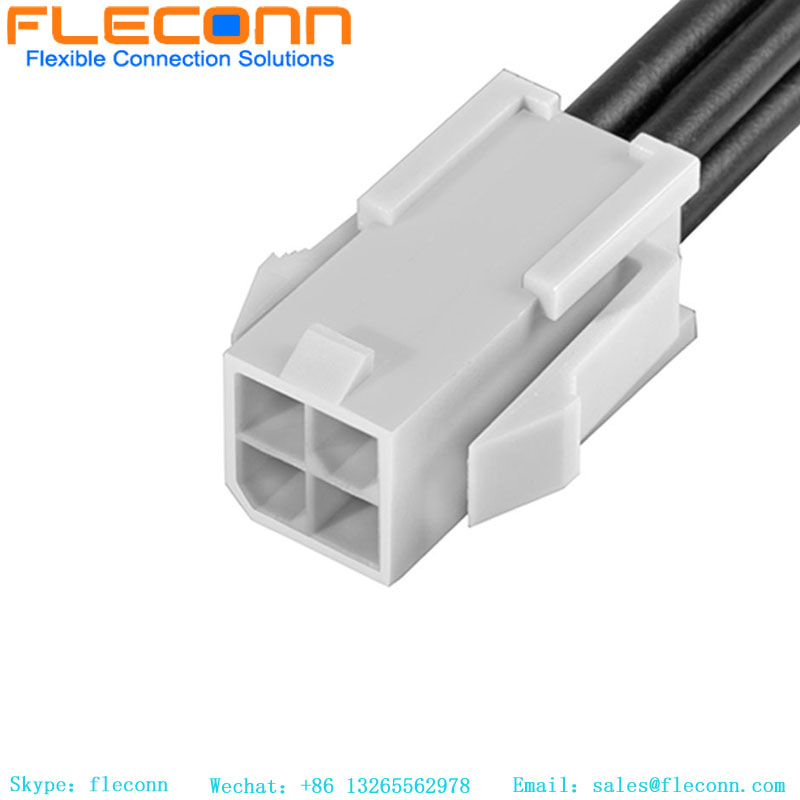

Molex Mini-Fit Jr. Plug Housing 39012046 Wire Harness
Molex Mini-Fit Jr. Plug Housing 39012046 Wire Harness Molex Mini-Fit Jr. Plug Housing 39012046 Wire Harness Molex Mini-Fit Jr. Plug Housing 39012046 Wire Harness Molex Mini-Fit Jr. Plug Housing 39012046 Wire Harness Molex Mini-Fit Jr. Plug Housing 39012046 Wire Harness

Molex Mini-Fit Jr. Plug Housing 39012046 Wire Harness

Item No.: MX-39012-04P-M-4.2PH-PVC-0.5M
Product Name: Mini-Fit 4.2 Wire Harness
Connector Pitch：4.2MM
Connector : Molex 39012046, 2/4/6/8/10/12/14/16/18/20/22/24 pin
Crimp Terminal: 39000124
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Pitch Mating Interface: 4.20mm
Request Quote
Description Review
Description

Molex 4.2mm Pitch 39012026 Connector Wire Harness Product Description


FLECONN can custom made  overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Detail description for Molex 4.2mm Pitch 39012046 Cable Assembly

Prouduct Name  Custom Molex 39012046 Connector Wire Harness
Equivalent to Molex Part No.  2153272041，2153272042，2153272043，39012046
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 39012046 4.2mm Pitch Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 39000124 4.2mm Pitch Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 16 AWG, Reel. 39000040，18-24AWG
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007 AWG28#/26#/24#/22#/ tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1007 Round cable/ UL1571 Parallel cable
10. Color: Black, white, blue, green etc. MOQ 3000m except black.
11. Wiring diagrm: defined by customers
12. Inner molding material: LDPE resin
13. Outer molding material: 45P PVC resin
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag

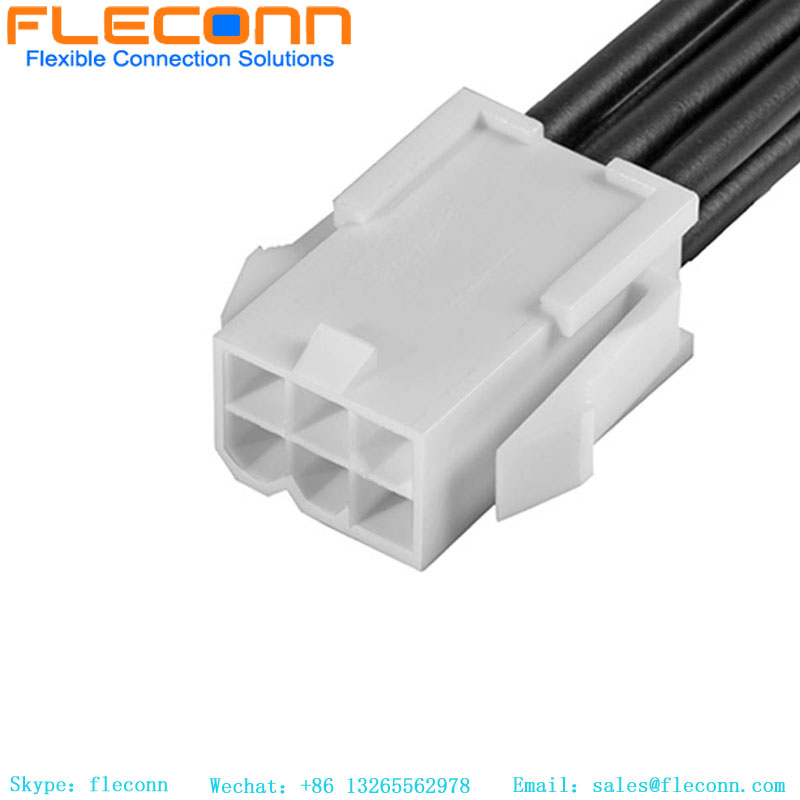

Molex Mini-Fit Jr. Plug Housing 39012046 Wire Harness

Molex Mini-Fit Jr. Plug Housing 39012046 Wire Harness

Molex 5559 Series 39012066 Connector Cable Assembly

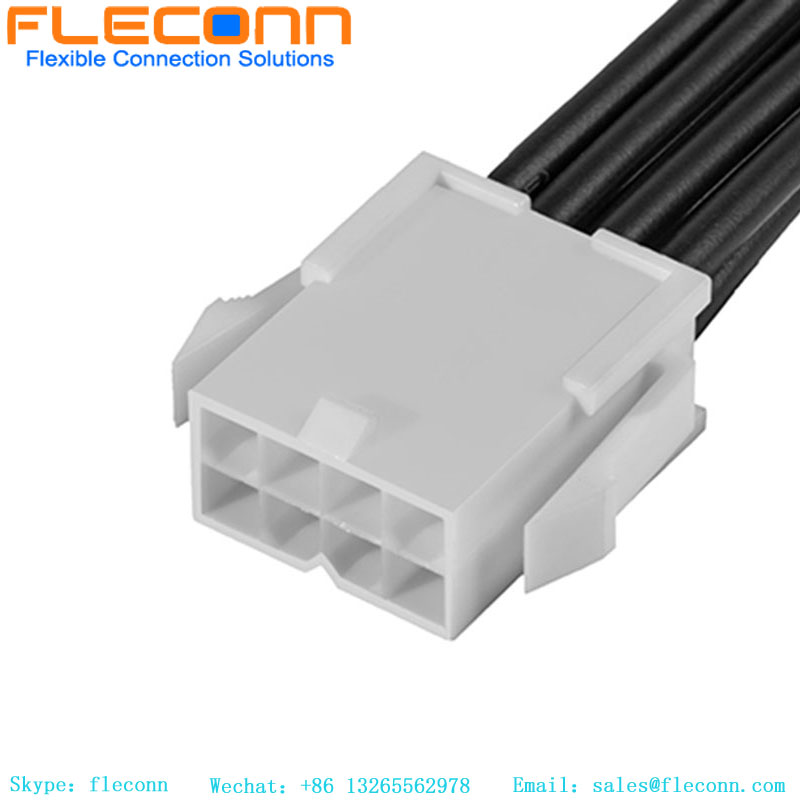

Molex with Panel Mounting Ears 39012086 Connector Cable Assembly

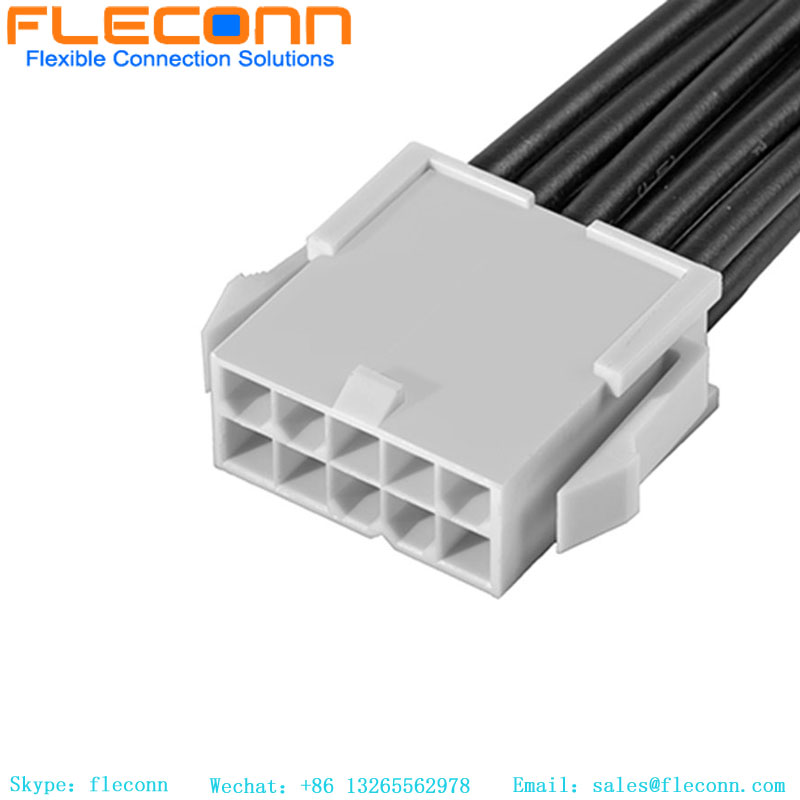

Molex Mini-Fit Jr. Plug Housing 4.2mm Pitch 39012106 Cable Assembly

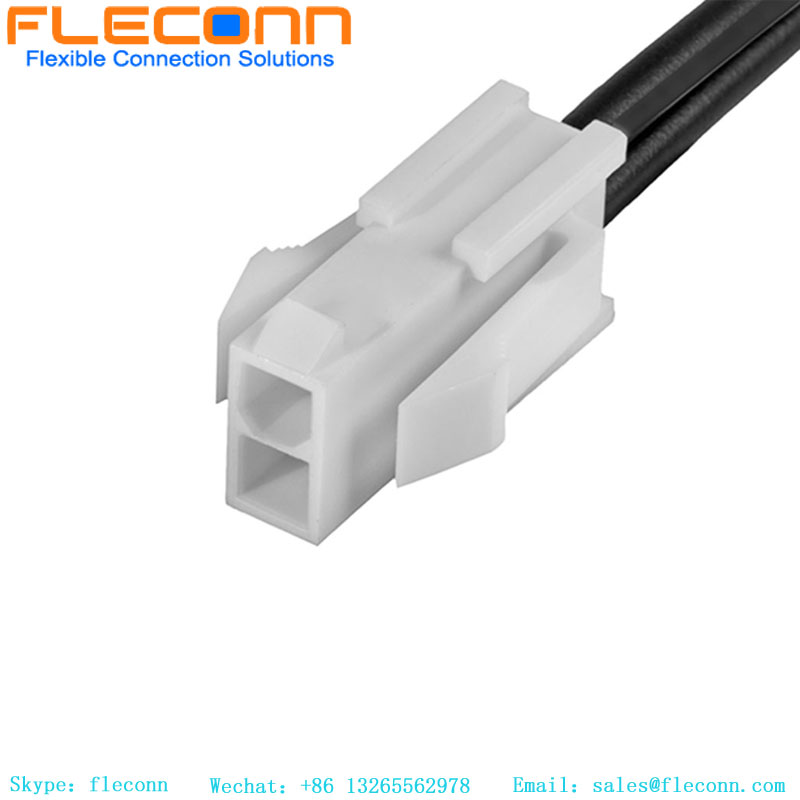

Molex 4.2mm Pitch 39012026 Connector Wire Harness

Molex Connector Wire Harness

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
