M12 To M12 Ethernet Cable

Item No.: M12-XM-ST-RJ45-08P-1M
Product series: M12 Ethernet Cable
Connector code: X-Coded
Gender: Male
Waterproof grade: IP67
Contact number: 8-Pin
Plug Guide: St
Description
Description

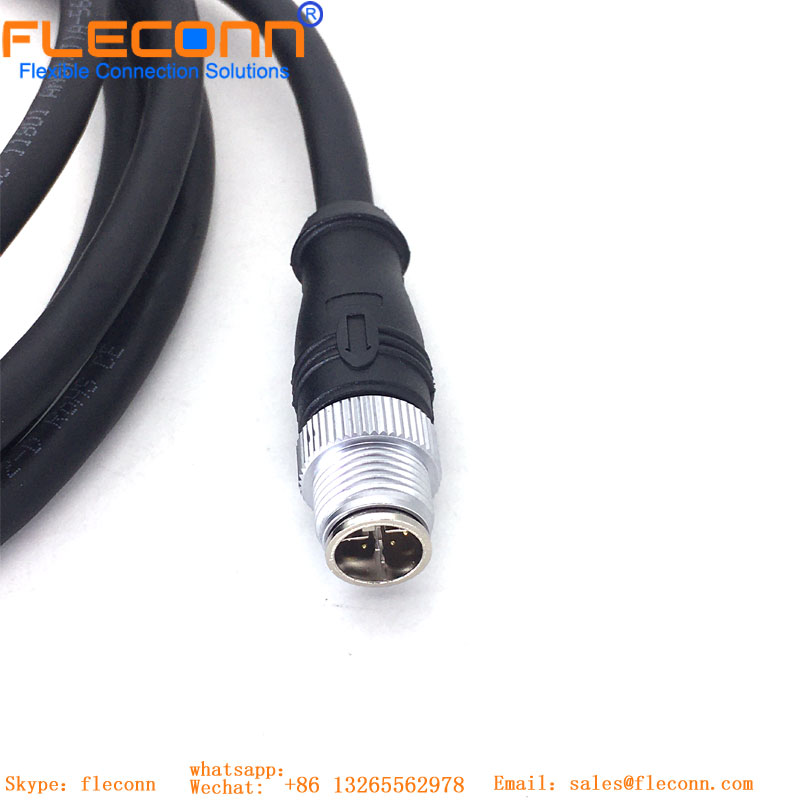

M12 To M12 Ethernet Cable Product Description



M12 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. The insulation materials we commonly use are PVC, SR-PVC, PP, PE. The matching M12 board-end connectors (sockets) are soldered electronic wire type and PCB board pin type. M12 board-end soldering type can be welded electronic wire and resin potting package according to customer's reservation requirements.


M12 X Coded Ethernet Cable product parameters




Product series: M12 Connector Cable Connector Gender:  Male
Connector code: X-Coded type Connector core number: 8P
Industry standard: IEC61076-2-101 Connector type: Single head with cable
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Adapter wire gauge: 20-26AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 0.5A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
Wire cover: PVC/PUR


M12 X Coded To RJ45 Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

M12 To M12 Ethernet Cable
FLECONN can supply M12 x-coded Female connector To Rj45 Cable

FLECONN can produce high quality RJ45 To M12 Ethernet Cable.

FLECONN can supply M12 X Coded To RJ45 Cable

FLECONN can supply high quality RJ45 To M12 Cable

M12 X Coded to RJ45 Cat6A Ethernet Cable

Other M12 Connector Cable

FLECONN can provide IP66 waterproof M12 8-bit X-coded female to RJ45 Ethernet cables for power and signal transmission connections.
