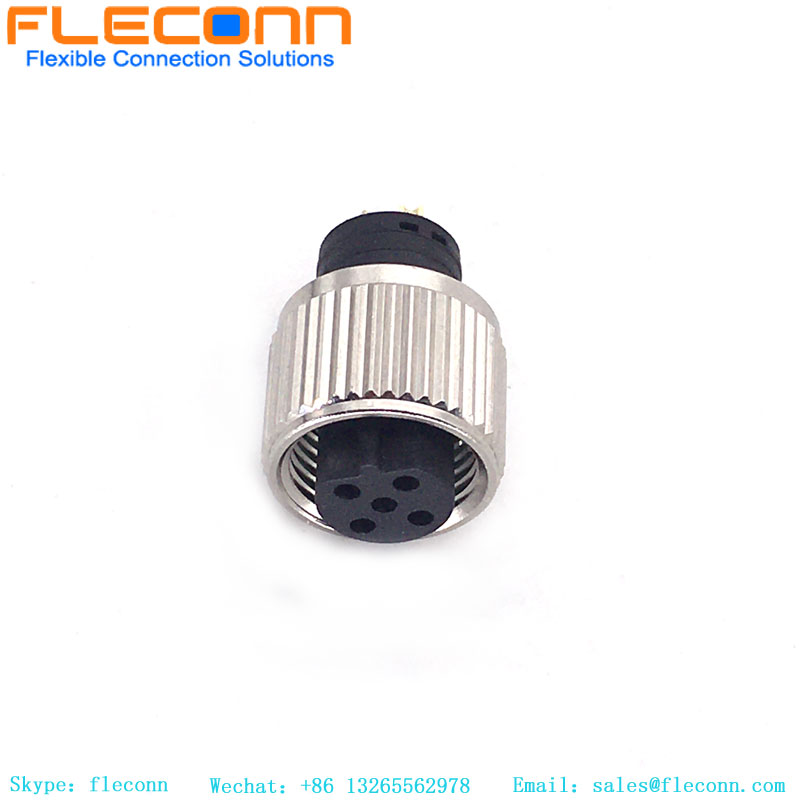

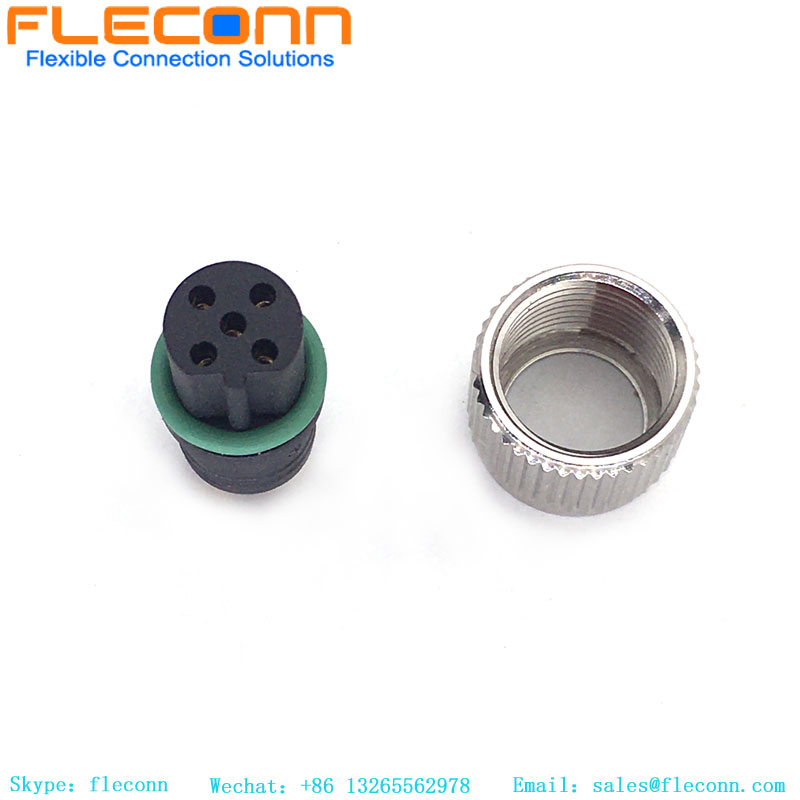

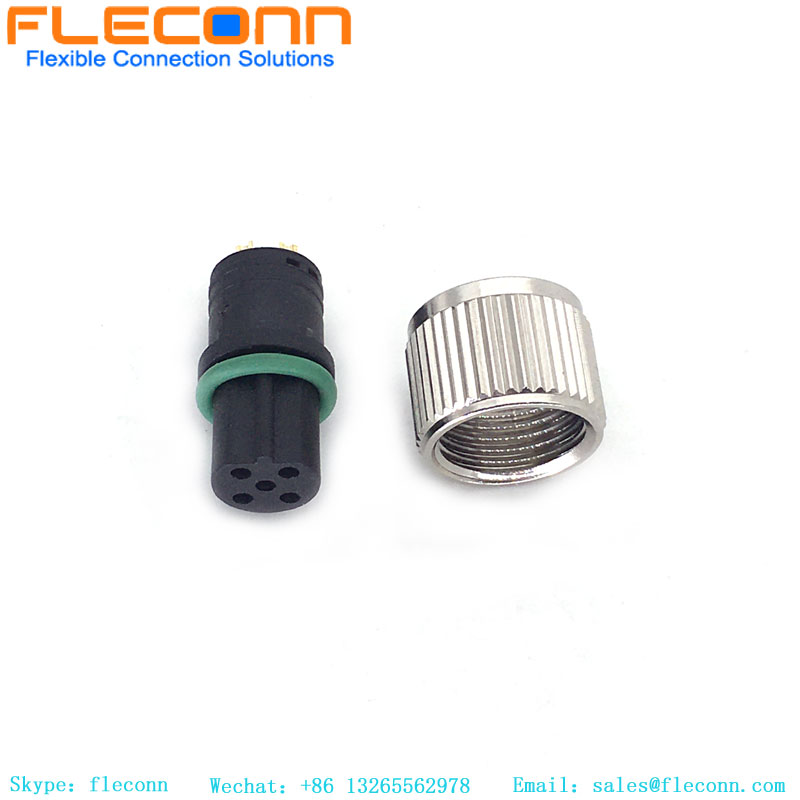

M12 Molded Cable Connector， B-Code Straight 5pin Female Non-shield connector
M12 Molded Cable Connector， B-Code Straight 5pin Female Non-shield connector M12 Molded Cable Connector， B-Code Straight 5pin Female Non-shield connector M12 Molded Cable Connector， B-Code Straight 5pin Female Non-shield connector M12 Molded Cable Connector， B-Code Straight 5pin Female Non-shield connector M12 Molded Cable Connector， B-Code Straight 5pin Female Non-shield connector

M12 Molded Cable Connector， B-Code Straight 5pin Female Non-shield connector

Item No.: 00859
Product series: M12 Connector
Connector code: B type
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 5P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 Molded Cable Connector， B-Code Straight 5pin Female Non-shield connector

M12 Molded Cable Connector， B-Code Straight 5pin Female Non-shield connector

Product Overview

The M12 B-Coded Molded Cable Connector is designed for fieldbus and Profibus applications. With its secure B-coded design, it ensures reliable data transmission and strong resistance to vibration, oil, and dust. It is widely used in automation, sensor connections, and industrial communication systems.

Product Features

  • Standard M12 B-coding for Profibus and fieldbus systems
  • Available in 4-pin and 5-pin versions
  • Overmolded housing for high durability
  • IP67 protection for harsh environments
  • Supports vibration and shock resistance

M12 Molded Cable Connector， B-Code Straight 5pin Female Non-shield connector Technical Data

Technical data
parameter category parameter name parameter data
Mechanical and Electrical Reference standard IEC 61076-2-101
Rated current 4A
Rated voltage 60V
Impulse voltage 800V
Contact resistance ≤5mΩ
Insulation resistance ≥100MΩ
EMC Shielding Full shielding
Locking system M12 × 1.0mm screw
Tightening torque Recommended: 1.0 Nm
Max: 1.2 Nm
Material Terminal material Phosphor bronze
Contact plating Au (Gold)
Insert PA66+GF, Black
Overmold TPU, Black
Screw nut Brass, CNC
Screw nut plating Nickel plated
O-ring FKM
Cable UL AWM style UL2464
Conductor material Stranded Tinned Copper
Conductor cross-section 22AWG*5P
Wire colors Black, White, Red, yellow, green
Sheath/insulation material PVC or PUR, black
Outer diameter Ø5.6 ± 0.2mm
Cable length 1000mm ±50 (Including Connector)
Environmental Rated temperature Static: -40° ~ 80℃
Dynamic: -25° ~ 80℃
Protection degree IP67
Environmental Compliance ROHS
Pollution degree 3

Applications

  • Industrial automation
  • Fieldbus / Profibus communication
  • Sensors and actuators
  • Robotics and control systems
