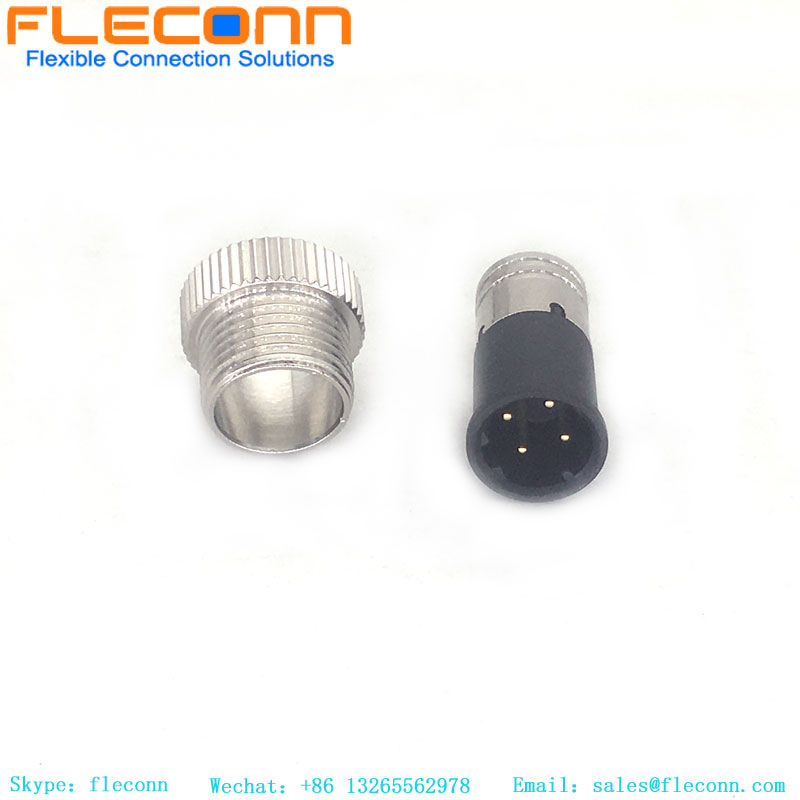

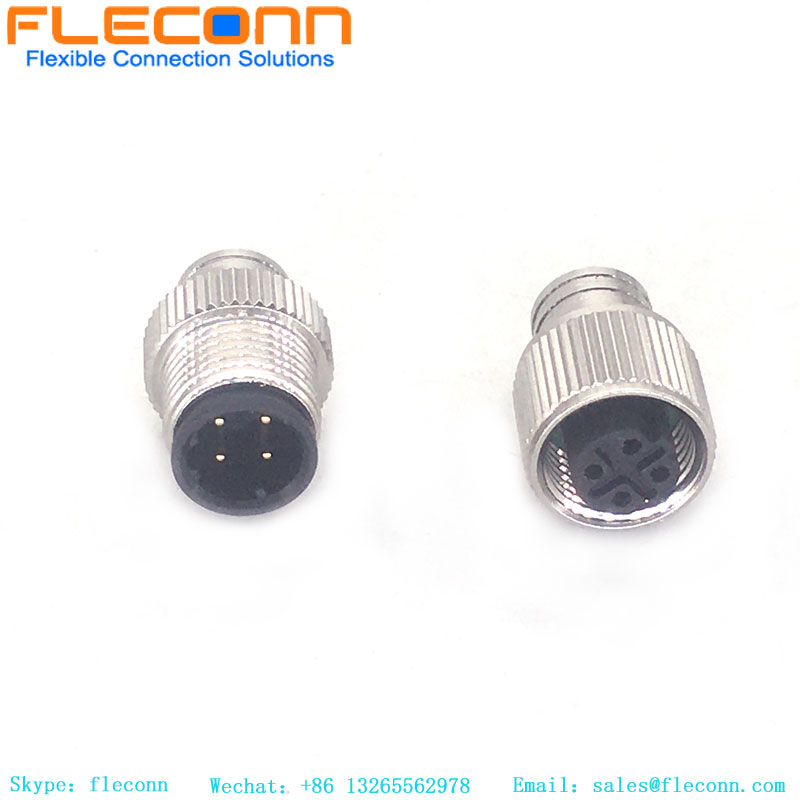

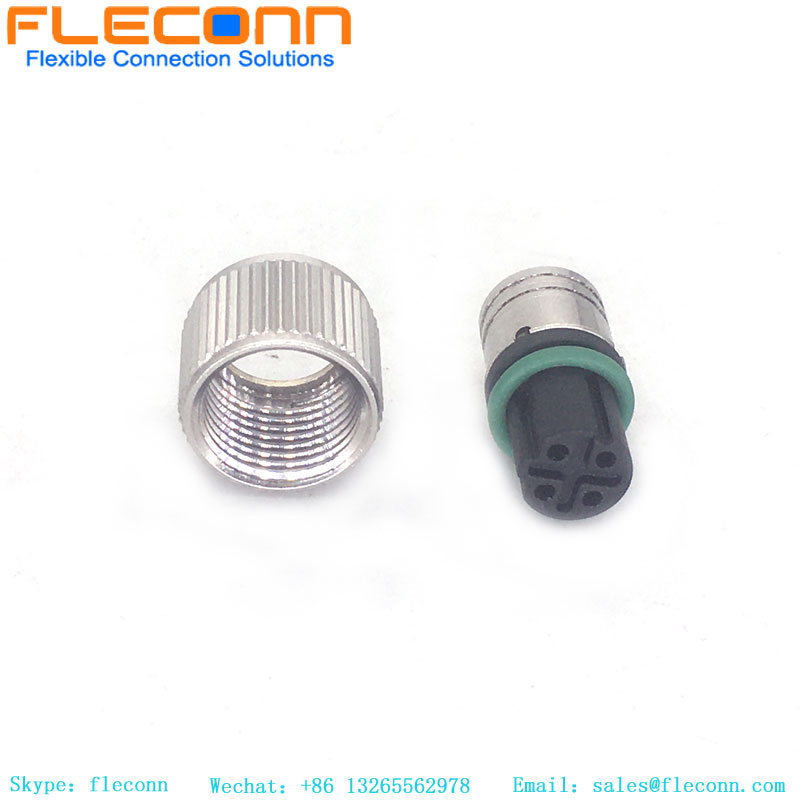

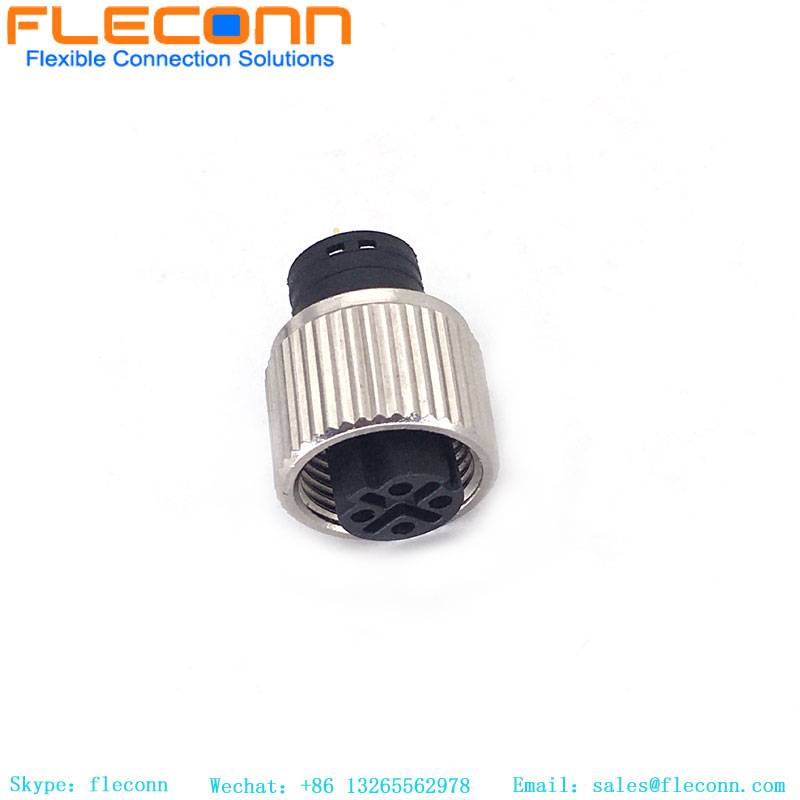

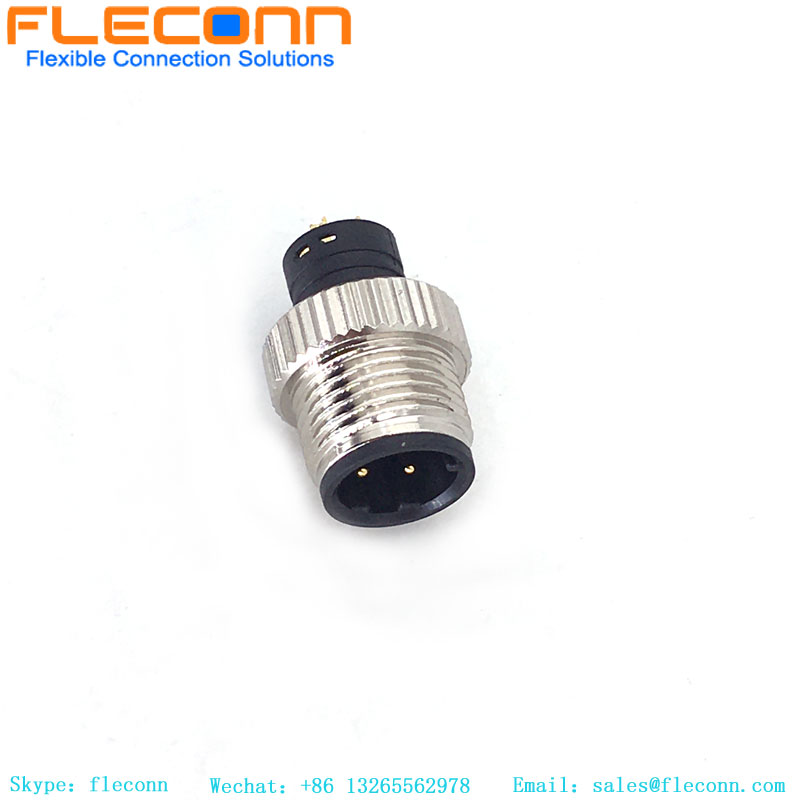

M12 D-Coded Overmolded Cable Connector
M12 D-Coded Overmolded Cable Connector M12 D-Coded Overmolded Cable Connector M12 D-Coded Overmolded Cable Connector M12 D-Coded Overmolded Cable Connector M12 D-Coded Overmolded Cable Connector

M12 D-Coded Overmolded Cable Connector

Item No.: 00857
Product series: M12 Connector
Connector code: D type
Connector Gender: Male
Waterproof grade: IP67
Connector core number: 4P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 D-Coded Overmolded Cable Connector

M12 D-Coded Shielded Cable Connector

Product Overview

The Fleconn M12 D-Coded Overmolded Cable Connector is designed for high-performance Ethernet and signal transmission in industrial automation and networking systems. It supports fast data transfer, features a robust shielded structure for EMC protection, and ensures reliable operation even in harsh environments.

Key Features

  • 4-pin D-Coded standard, compliant with IEC 61076-2-101.
  • Shielded design for excellent EMC performance.
  • IP67 waterproof and dustproof rating for reliable outdoor and factory use.
  • Gold-plated contacts for low resistance and stable connectivity.
  • Custom cable length and specifications available upon request.

M12 D-Coded Overmolded Cable Connector Technical Data

Technical data
parameter category parameter name parameter data
Mechanical and Electrical Reference standard IEC 61076-2-101
Rated current 4A
Rated voltage 48V
Impulse voltage 800V
Contact resistance ≤5mΩ
Insulation resistance ≥100MΩ
EMC Shielding Full shielding
Locking system M12 × 1.0mm screw
Tightening torque Recommended: 1.0 Nm
Max: 1.2 Nm
Material Terminal material Phosphor bronze
Contact plating Au (Gold)
Insert PA66+GF, Black
Overmold TPU, Black
Screw nut Brass, CNC
Screw nut plating Nickel plated
O-ring FKM
Cable UL AWM style UL2464
Conductor material Stranded Tinned Copper
Conductor cross-section 24AWG*4P (Shielded)
Wire colors Black, White, Red, yellow
Sheath/insulation material PVC or PUR, black
Outer diameter Ø6.0 ± 0.2mm
Cable length 1000mm ±50 (Including Connector)
Environmental Rated temperature Static: -40° ~ 80℃
Dynamic: -25° ~ 80℃
Protection degree IP67
Environmental Compliance ROHS
Pollution degree 3

Applications

The M12 D-Coded Overmolded Cable Connector is widely used in Ethernet communication, industrial automation, sensors, actuators, machine vision, and factory control networks. Its shielding and robust design make it the ideal choice for stable high-speed data transmission in demanding environments.
