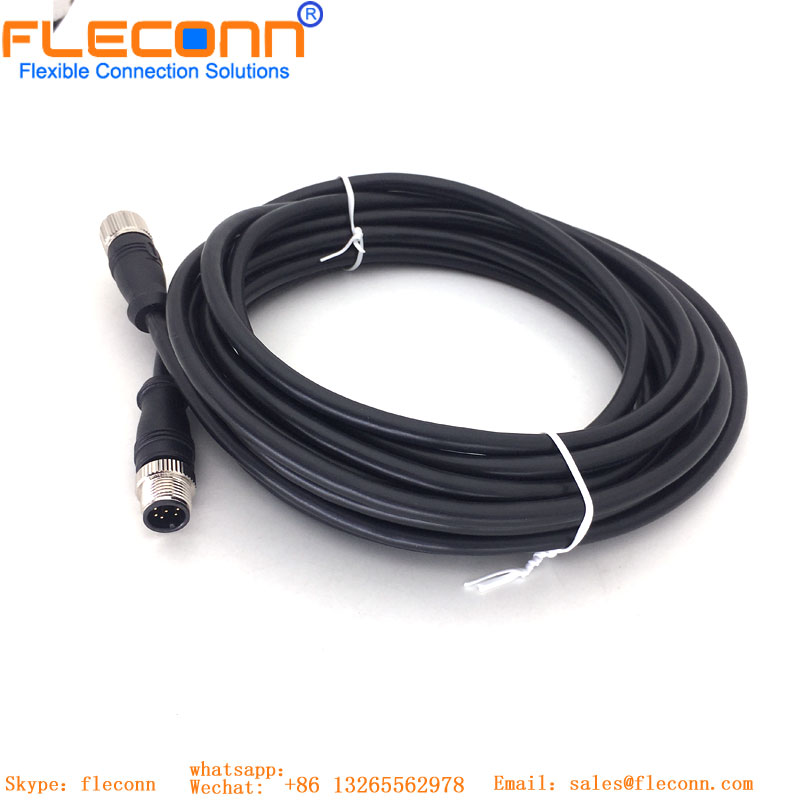

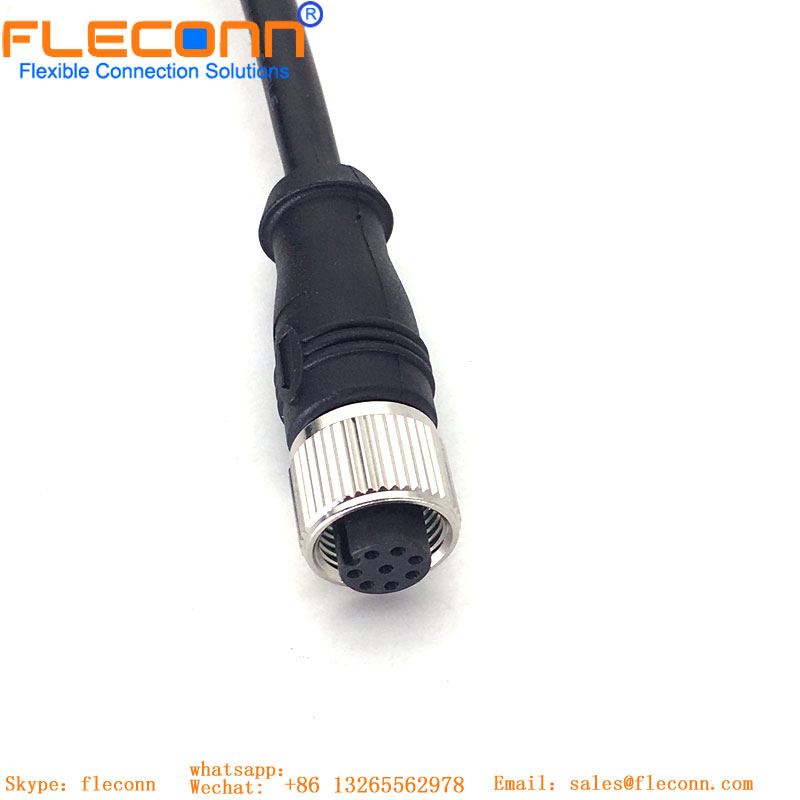

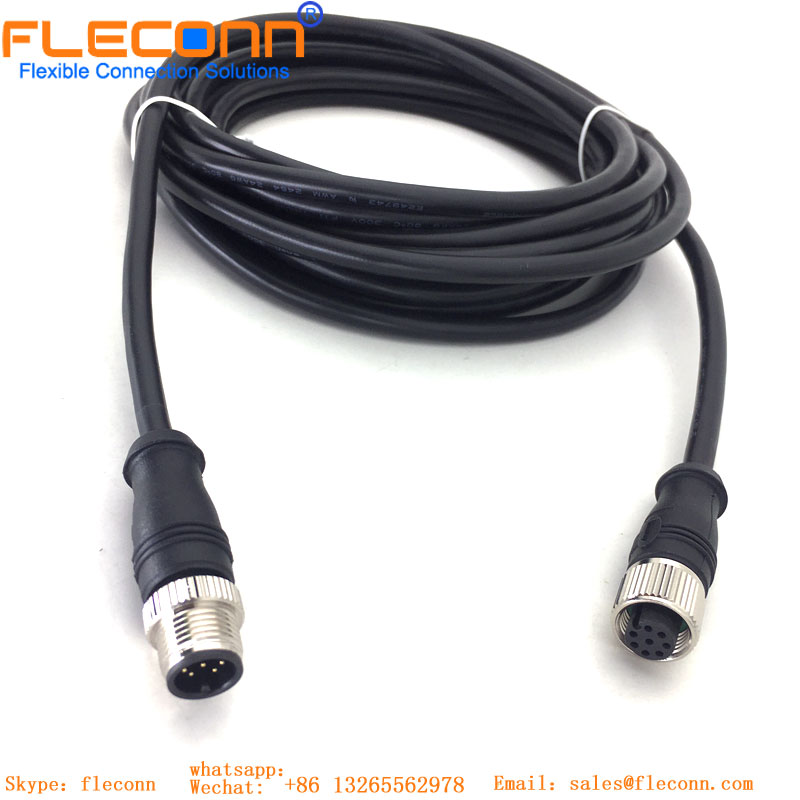

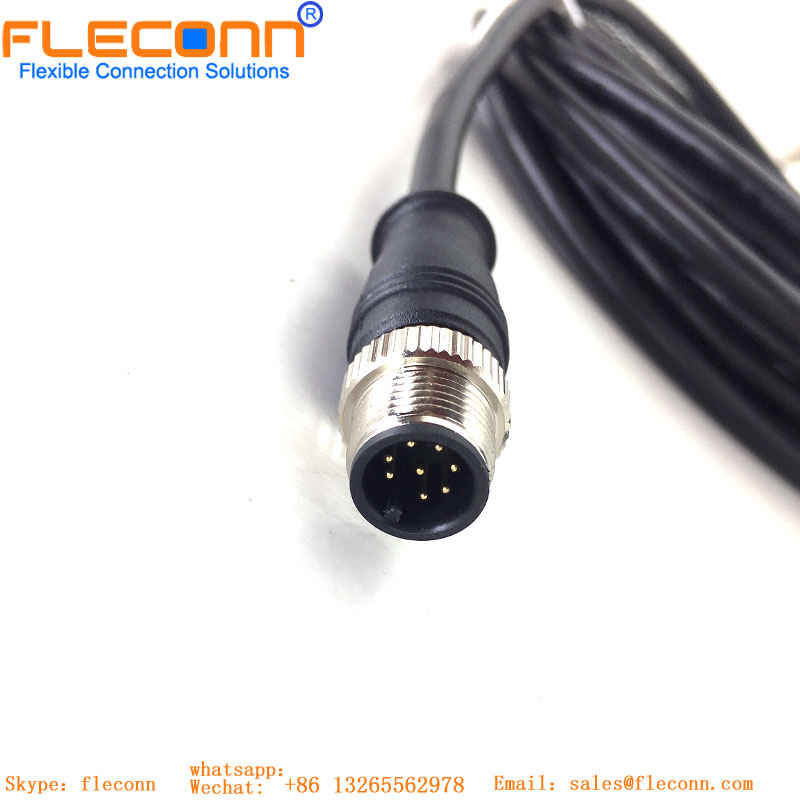

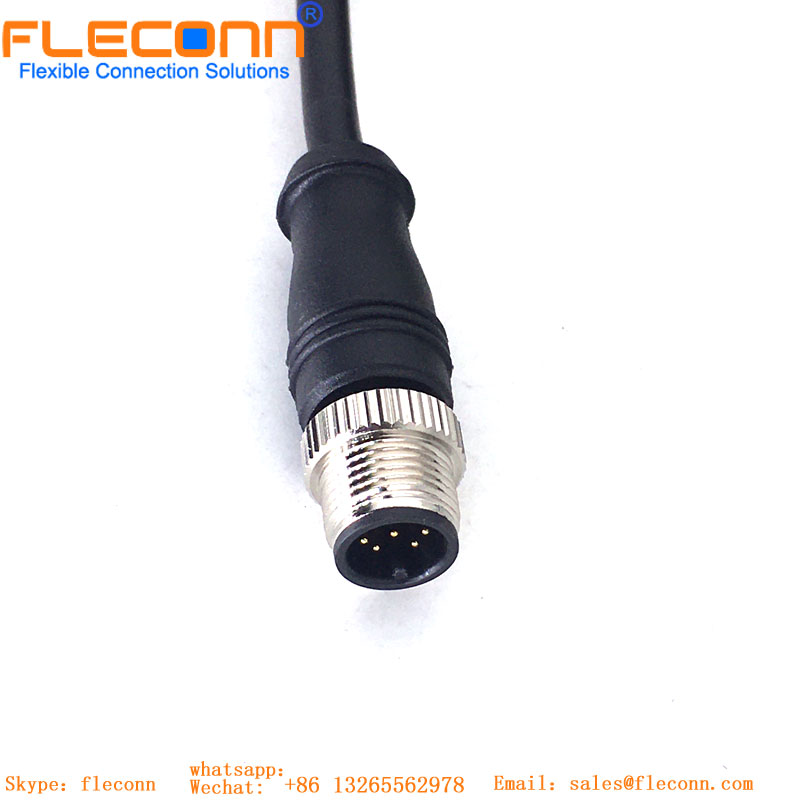

M12 Cable 8 Pin,A-coded Male To Female IP67 Waterproof Cordset

M12 Cable 8 Pin,A-coded Male To Female IP67 Waterproof Cordset

M12 Cable 8 Pin,A-coded Male To Female IP67 Waterproof Cordset

M12 Cable 8 Pin,A-coded Male To Female IP67 Waterproof Cordset

M12 Cable 8 Pin,A-coded Male To Female IP67 Waterproof Cordset

M12 Cable 8 Pin,A-coded Male To Female IP67 Waterproof Cordset

Description

Description

M12 Cable 8 Pin Description

M12 8 pin male cable has been overmolded before leaving the factory. Our normal cable outer jacket's material is PUR or PVC, and the internal core wire insulation maybe PVC, SR-PVC, PP, PE required according to the application of the product. The core wire conductor may be 22AWG, 24AWG, 26AWG, 28AWG with unique insulation color code. The single wire conductor is mult-strands and soldered into each terminal on the m12 molding type connector. The outer moulding material of all of our m12 connector and cable is TPU resin. The matched M12 board-end connectors (sockets) are m12 panel mount connector with soldered wire terminals and PCB DIP terminals. There are two types of m12 pcb panel mount connector with straight and 90 degree right angle. This m12 A-code 8 pin male connector cable can reach IP67 / IP68 waterproof rating according to customer's application requirements.

M12 8 Pole Cable, A-Coded Male Straight Connector Cable product parameters

Product series: M12 Connector Cable	Connector Gender: Male To Female
Connector code: A type	Connector core number: 8P
Industry standard: IEC61076-2-101	Connector type: Single head with cable
Plug Guide: Straight	Terminal Material: Copper
Waterproof grade: IP67	Wiring method: welding wire
Adapter wire gauge: 20-26AWG	Connection method: threaded connection
Connector rubber core: PA66	Injection material: TPU
Rated current: 1A	Connector conductor: copper gold plated
Rated voltage: 60V	Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring	Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°	Wire cover: PVC/PUR

M12 A Coded，8 Pole Male IP67 Waterproof Cable Applications

●Sensors, actuators, encoders, motors	●Industrial grating light curtains
●Factory automation process control	●Equipment battery, semiconductor
●Package label printing equipment	●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment	●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly	●LED outdoor display, outdoor LED lighting

M12 Cable 8 Pin,A-coded Male To Female IP67 Waterproof Cordset
