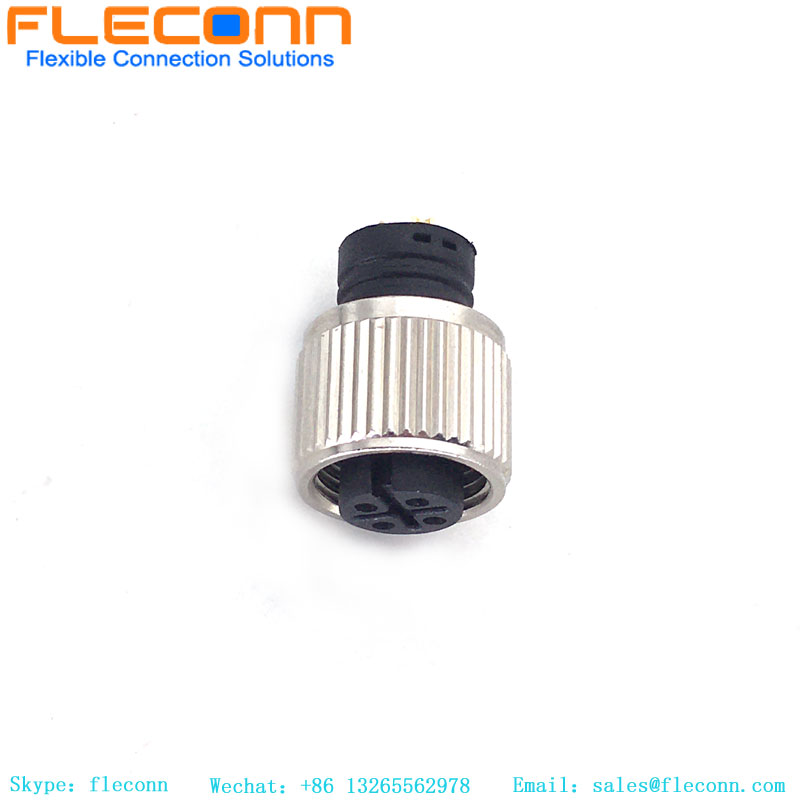

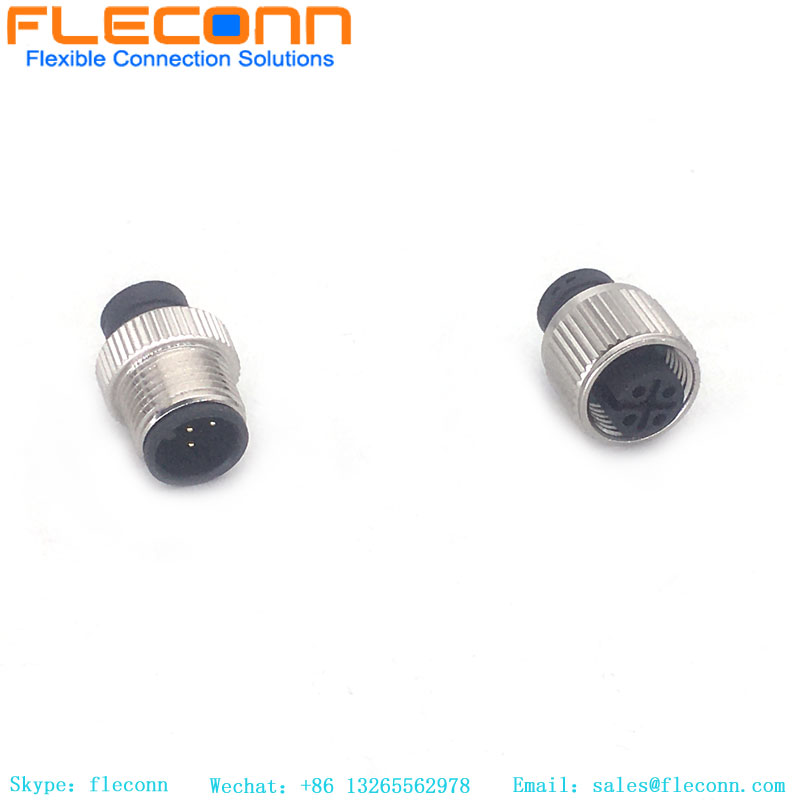

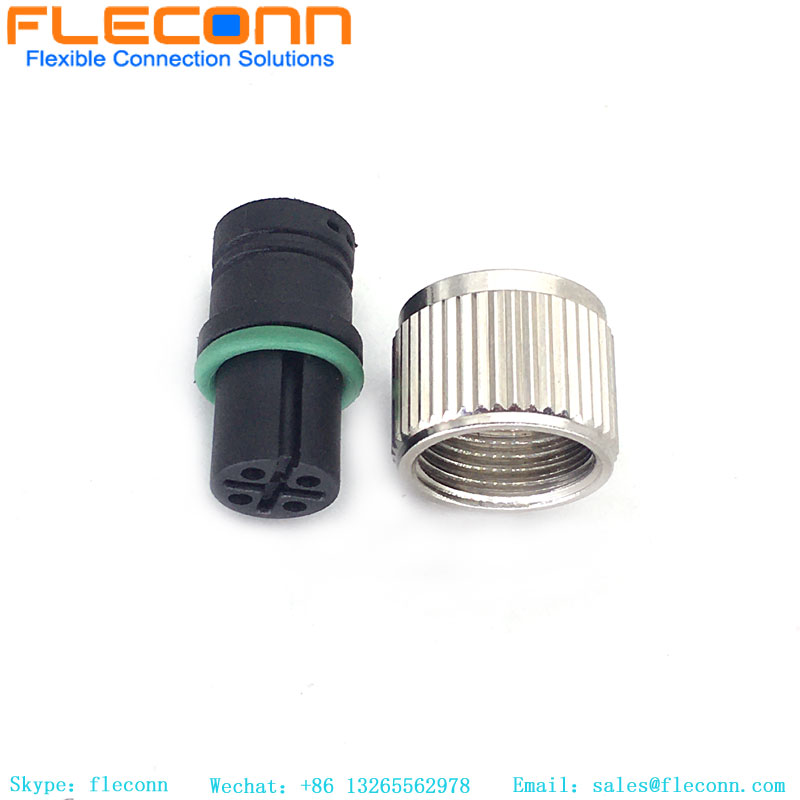

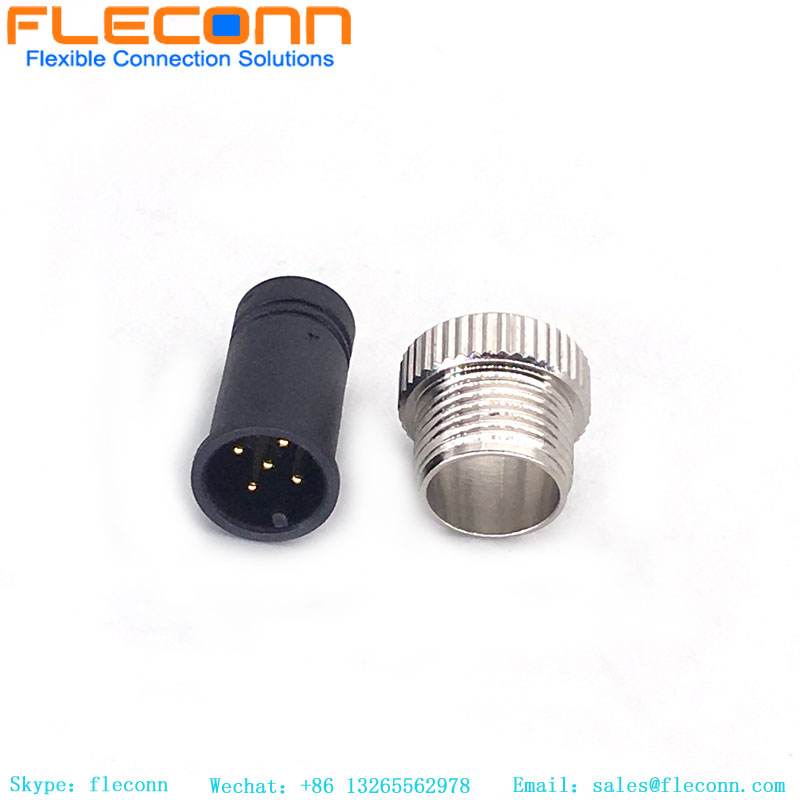

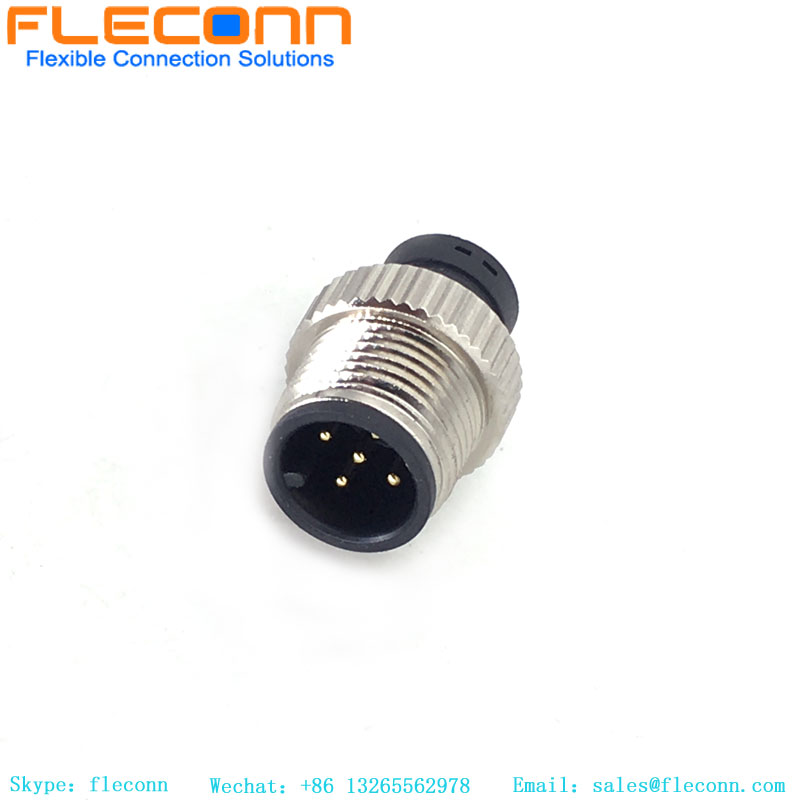

M12 A-Coded 5 Pin Overmolded Connector
M12 A-Coded 5 Pin Overmolded Connector M12 A-Coded 5 Pin Overmolded Connector M12 A-Coded 5 Pin Overmolded Connector M12 A-Coded 5 Pin Overmolded Connector M12 A-Coded 5 Pin Overmolded Connector

M12 A-Coded 5 Pin Overmolded Connector

Item No.: 00855
Product series: M12 Connector
Connector code: A type
Connector Gender: Male
Waterproof grade: IP67
Connector core number: 5P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 5 Pin A-Coded Molded Cable Connector

M12 5 Pin A-Coded Molded Cable Connector

Product Overview

The Fleconn M12 5 Pin A-Coded Molded Cable Connector is designed for reliable signal and power transmission in industrial automation systems. Featuring a robust PUR jacket, IP67 protection, and gold-plated contacts, it ensures excellent durability and stability in harsh environments.

Key Features

  • 5-pin A-Coded standard, compatible with IEC 61076-2-106.
  • Overmolded PUR cable, resistant to oil, vibration, and bending.
  • IP67 waterproof and dustproof rating for outdoor and factory use.
  • Gold-plated contacts for low resistance and reliable signal transmission.
  • Custom cable length and specifications available.

M12 A-Coded 5 Pin Overmolded Connector Technical Data

Technical data
parameter category parameter name parameter data
Mechanical and Electrical Reference standard  IEC 61076-2-106
Rated current  4A
Rated voltage  60V
Impulse voltage 600V
Contact resistance ≤5mΩ
Insulation resistance  ≥100MΩ
EMC Shielding Without Shielded
Locking system  M12 × 1.0mm screw
Tightening torque Recommended : 1.0 Nm
Max : 1.2 Nm
Material Terminal material Phosphor bronze
Contact plating Au (Gold)
Insert PA66+GF, Black
Overmold TPU, Black
Screw nut  Brass, CNC
Screw nut plating  Nickel plated
O-ring  FKM
Cable UL AWM style UL2464
Conductor material Stranded Tinned Copper
Conductor cross-section  22AWG*5C
Wire colors Black, Green, White, Red, yellow
Sheath/insulation material PVC, black
Outer diameter  Ø5.6 ± 0.2mm
Cable length 1000mm ±50 (Including Connecto)
Environmental Rated temperature Static : -40° ~ 80℃
Dynamic : -25° ~ 80℃
Protection degree IP67/ IP68
Environmental Compliance ROHS
Pollution degree  3

Applications

This M12 5 Pin A-Coded Molded Cable Connector is widely used in sensors, actuators, industrial automation, machine vision, and factory control systems. Its strong performance and durability make it an ideal choice for harsh industrial environments.
