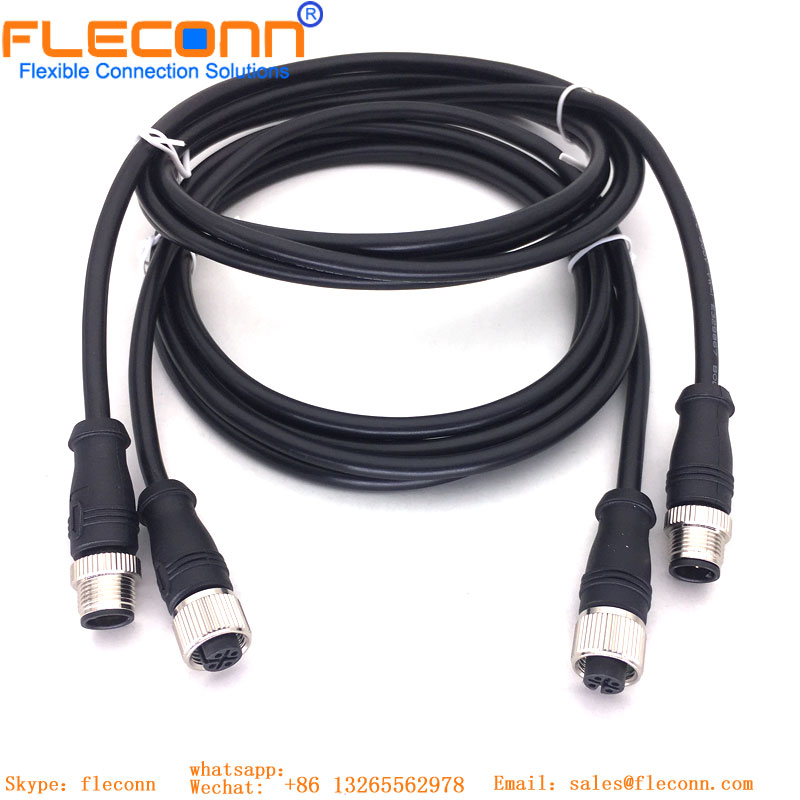

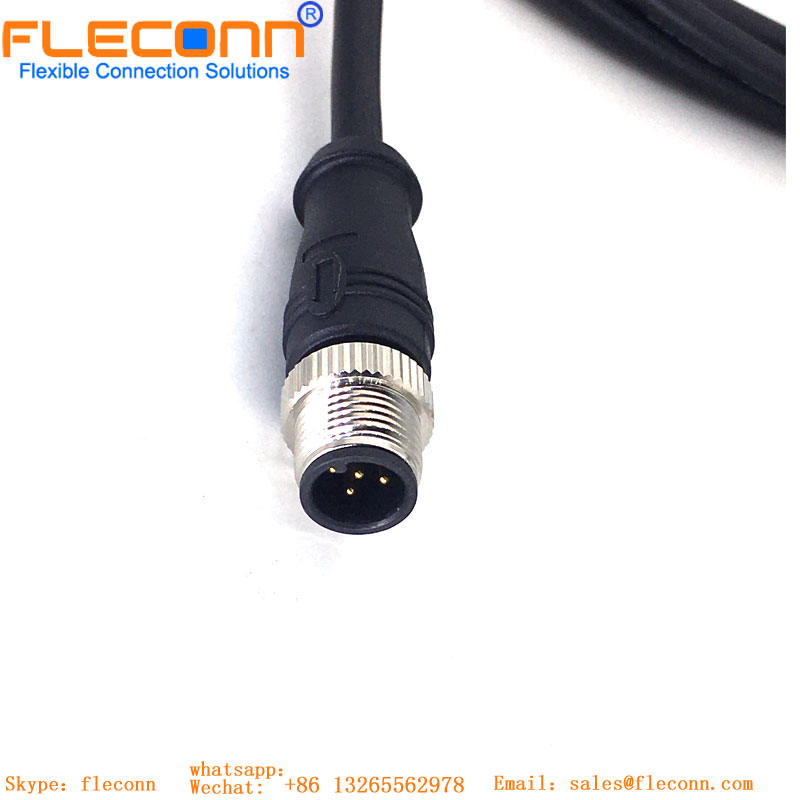

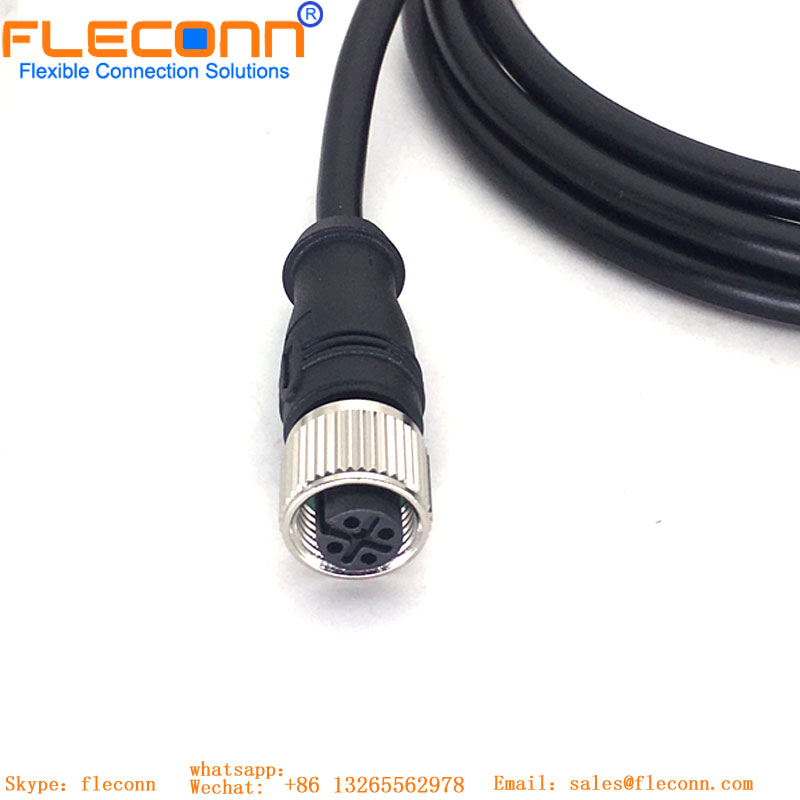

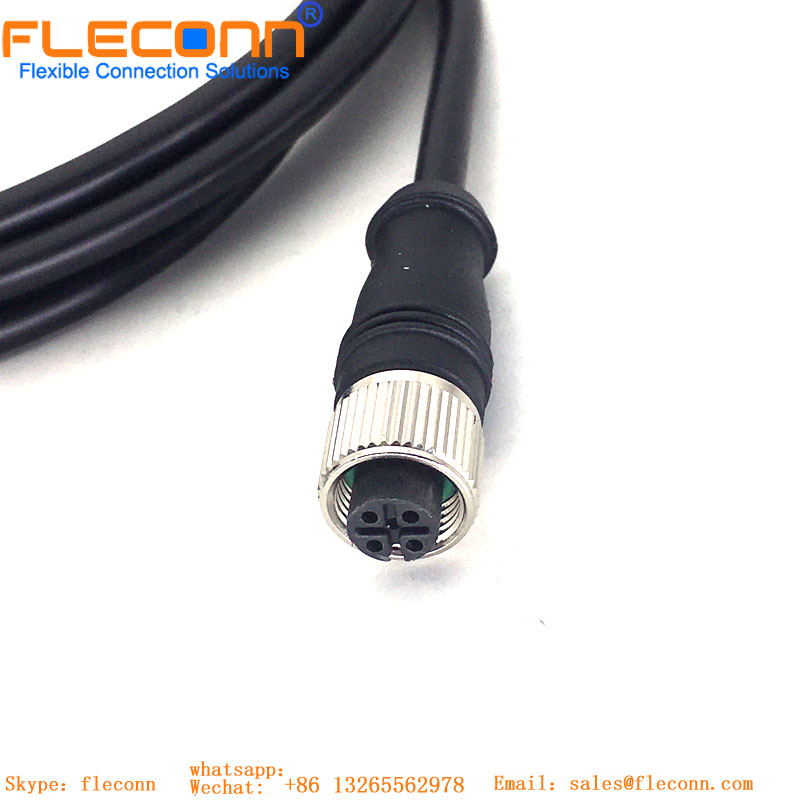

M12 5 Pin Sensor Cable
M12 5 Pin Sensor Cable M12 5 Pin Sensor Cable M12 5 Pin Sensor Cable M12 5 Pin Sensor Cable M12 5 Pin Sensor Cable M12 5 Pin Sensor Cable

M12 5 Pin Sensor Cable

Item No.: M12AF-AF-ST-05P-TPU-5M
Product series: M12 Connector Cable
Connector code: A type
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 5P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 5 Pin Cable Description



Fleconn’s M12 5 Pin Cable is designed for reliable data and signal transmission in industrial automation systems. With a robust overmolded structure, secure threaded locking, and excellent resistance to vibration, oil, and moisture, it ensures stable performance even in harsh environments. The M12 5 Pin Cable is widely used for sensors, actuators, robotics, field devices, and control systems, providing fast installation and long service life. Fleconn offers high-quality customized M12 cable assemblies with competitive pricing and flexible lengths to match various industrial communication needs. Choose Fleconn for durable connectivity and efficient automation operation.



M12 5 Pin Sensor Cable product parameters



Product series: M12 Connector Cable Connector Gender: Female
Connector code: A type Connector core number: 5P
Industry standard: IEC61076-2-101 Connector type: Single head with cable
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Adapter wire gauge: 20-26AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
 Wire cover: PVC/PUR



M12 A Coded 5 Pin Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

M12 5 Pin Sensor Cable

M12 5 Pin Sensor Cable

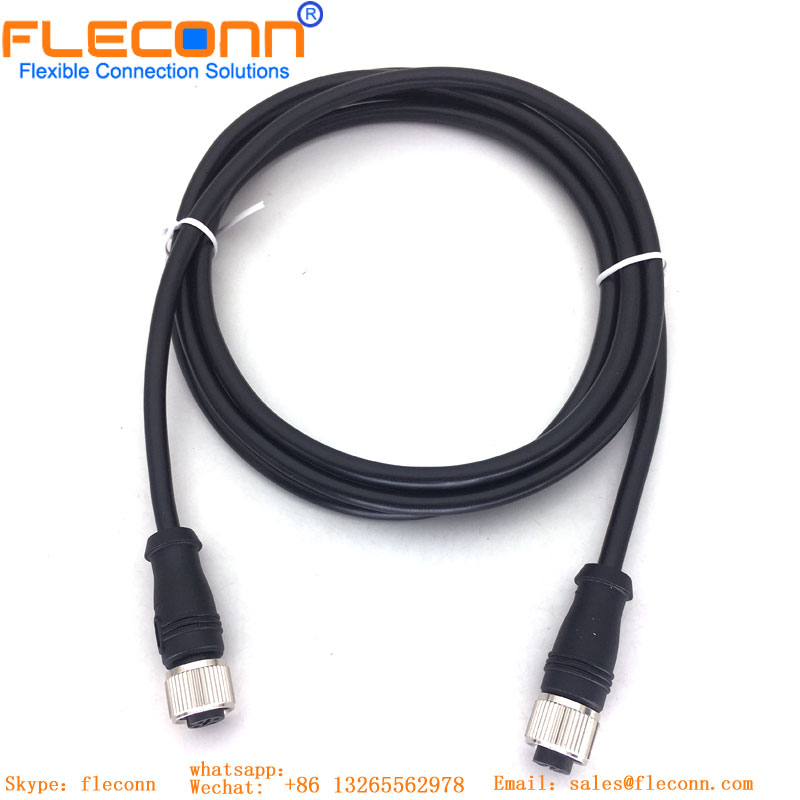

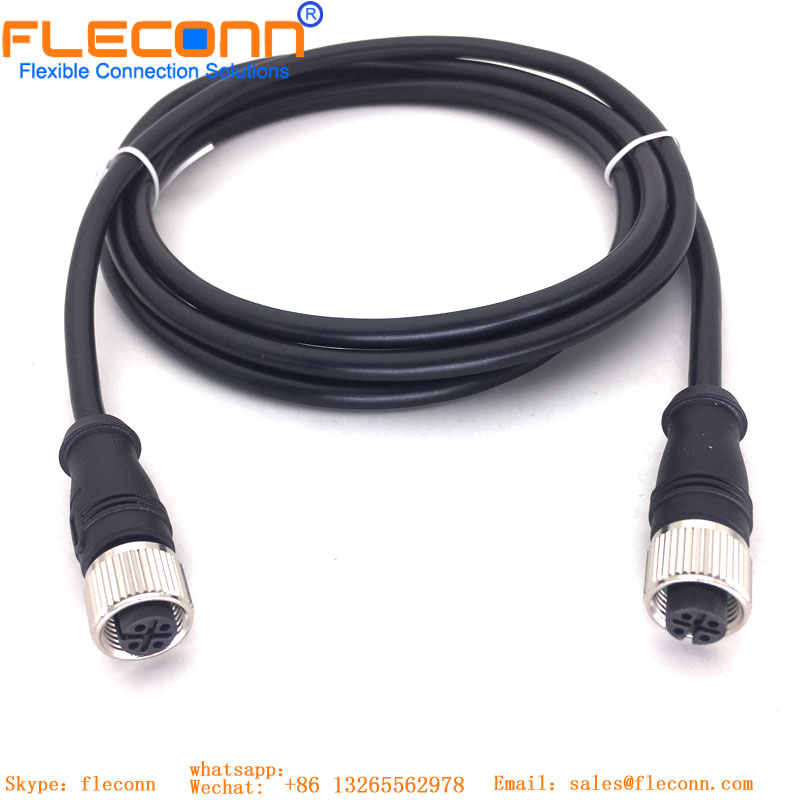

M12 To M12 Cable,5 Pin A-Coded Wateproof Connector cable

M12 Female Cable, 5 Pin Waterproof PUR Jacket Cable Assembly

M12 Cable 5 Pin

M12 5 Pin Cable

M12 A Coded 5 Pin Cable

Other M12 Connector Cable

FLECONN can provide IP66 waterproof M12 8-bit X-coded female to RJ45 Ethernet cables for power and signal transmission connections.
