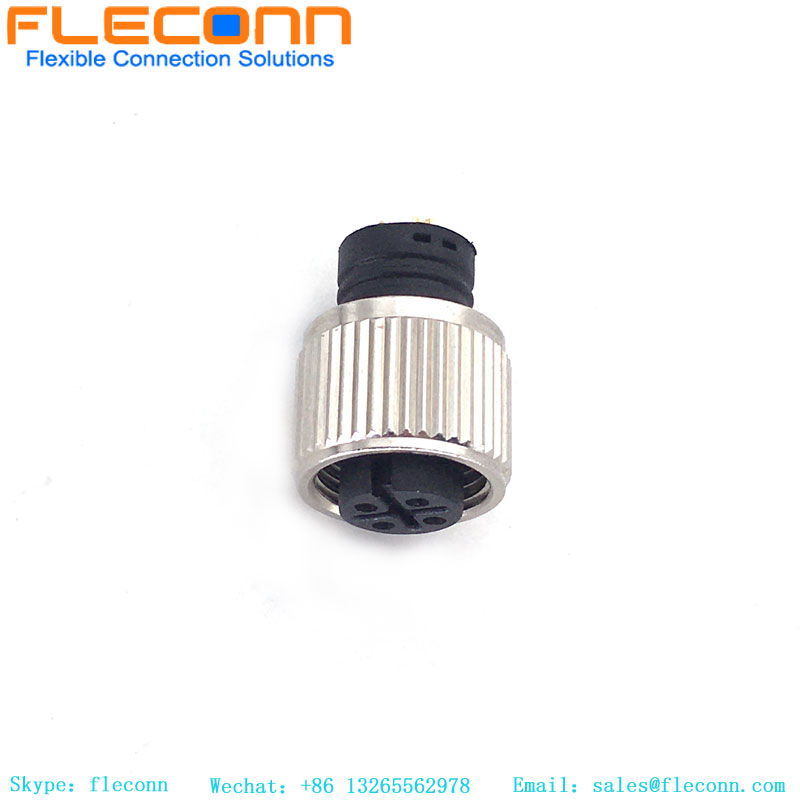

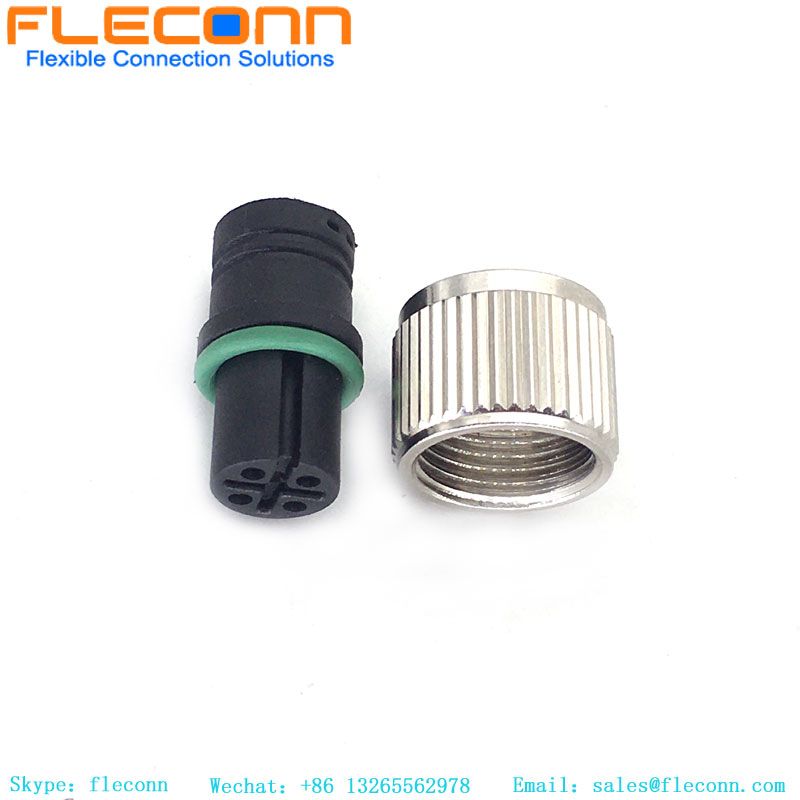

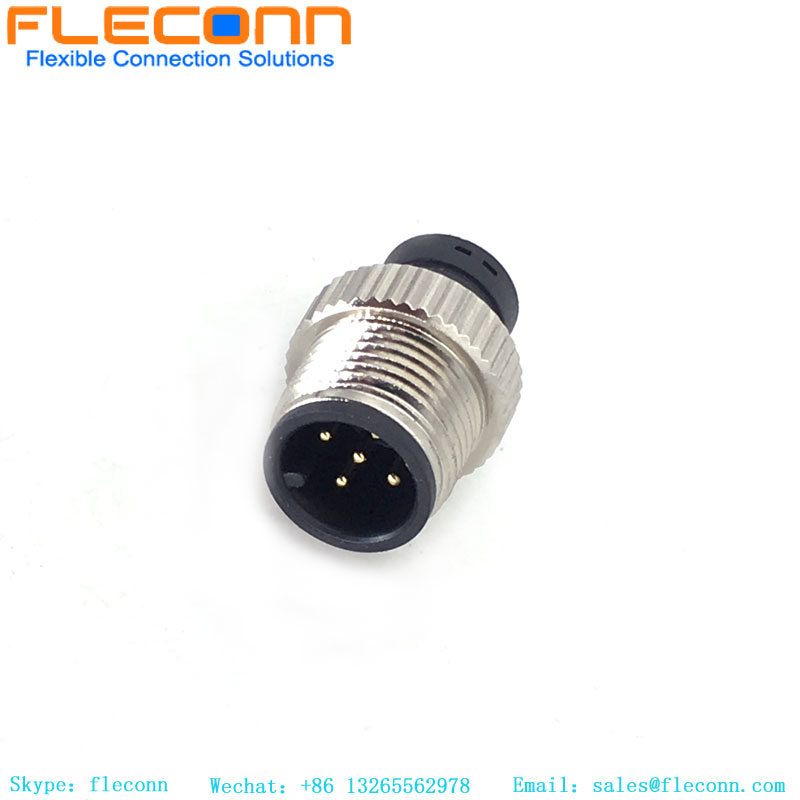

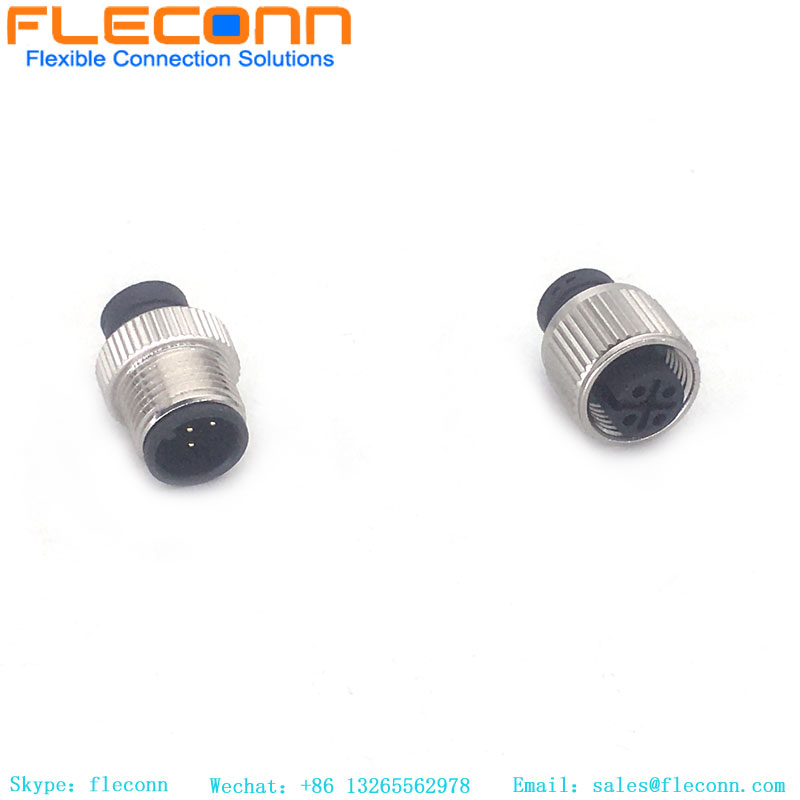

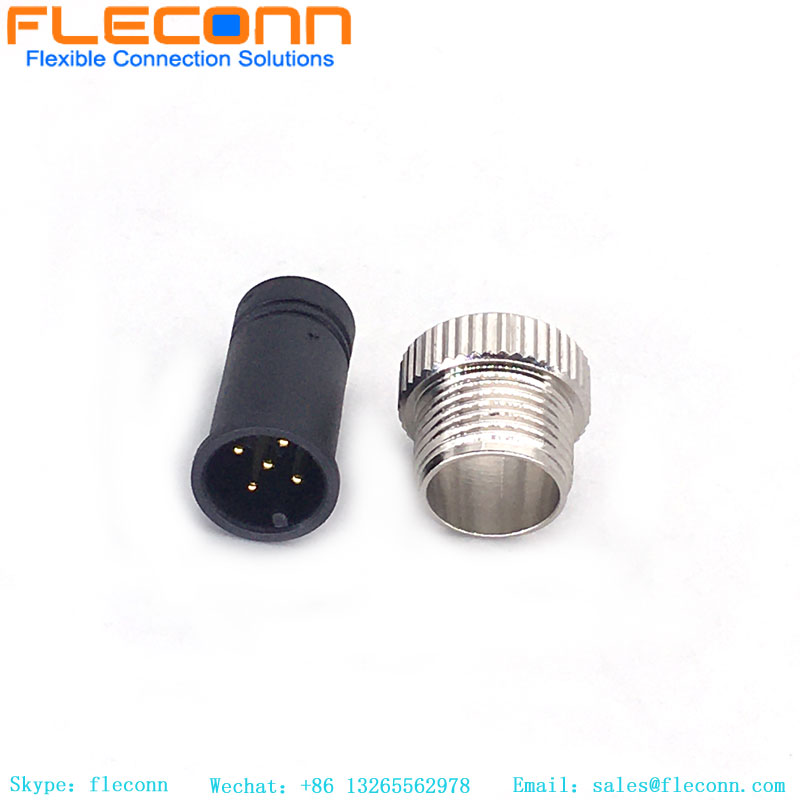

M12 5 Pin A-Coded Molded Cable Connector

M12 5 Pin A-Coded Molded Cable Connector

M12 5 Pin A-Coded Molded Cable Connector

M12 5 Pin A-Coded Molded Cable Connector

M12 5 Pin A-Coded Molded Cable Connector

M12 5 Pin A-Coded Molded Cable Connector

Description Review

Description

M12 5 Pin A-Coded Molded Cable Connector

M12 5 Pin A-Coded Molded Cable Connector

Product Overview

The M12 5 Pin A-Coded Molded Cable Connector by Fleconn is specifically designed for industrial automation applications, offering secure and durable connections for sensors, actuators, and industrial control systems. With its molded design, it ensures reliable performance in harsh environments.

Key Features

Standard M12 A-Coded 5 Pin interface
Molded design for durability and IP67 waterproof rating
Compatible with sensors, actuators, and fieldbus systems
Flexible cable length and customization available
High-quality copper conductors for stable signal transmission

M12 5 Pin A-Coded Molded Cable Connector Technical Data

Technical data
parameter category	parameter name	parameter data
Mechanical and Electrical	Reference standard	IEC 61076-2-106
	Rated current	4A
	Rated voltage	60V
	Impulse voltage	600V
	Contact resistance	≤5mΩ
	Insulation resistance	≥100MΩ
	EMC Shielding	Shielded
	Locking system	M12 × 1.0mm screw
	Tightening torque	Recommended : 1.0 Nm Max : 1.2 Nm
Material	Terminal material	Phosphor bronze
	Contact plating	Au (Gold)
	Insert	PA66+GF, Black
	Overmold	TPU, Black
	Screw nut	Brass, CNC
	Screw nut plating	Nickel plated
	O-ring	FKM
Cable	UL AWM style	UL2464
	Conductor material	Stranded Tinned Copper
	Conductor cross-section	22AWG*5C
	Wire colors	Black, Green, White, Red, yellow, orange, blue, brown
	Sheath/insulation material	PVC, black
	Outer diameter	Ø5.6 ± 0.2mm
	Cable length	1000mm ±50 (Including Connecto)
Environmental	Rated temperature	Static : -40° ~ 80℃ Dynamic : -25° ~ 80℃
	Protection degree	IP67/ IP68
	Environmental Compliance	ROHS
	Pollution degree	3

Applications

Ideal for use in industrial automation, sensor connections, PLC systems, and field devices where reliable and waterproof connectivity is essential.

Why Choose Fleconn?

Fleconn provides high-performance M12 connectors with a focus on quality, precision, and durability. Our products are widely used in industrial automation, robotics, and smart manufacturing.
