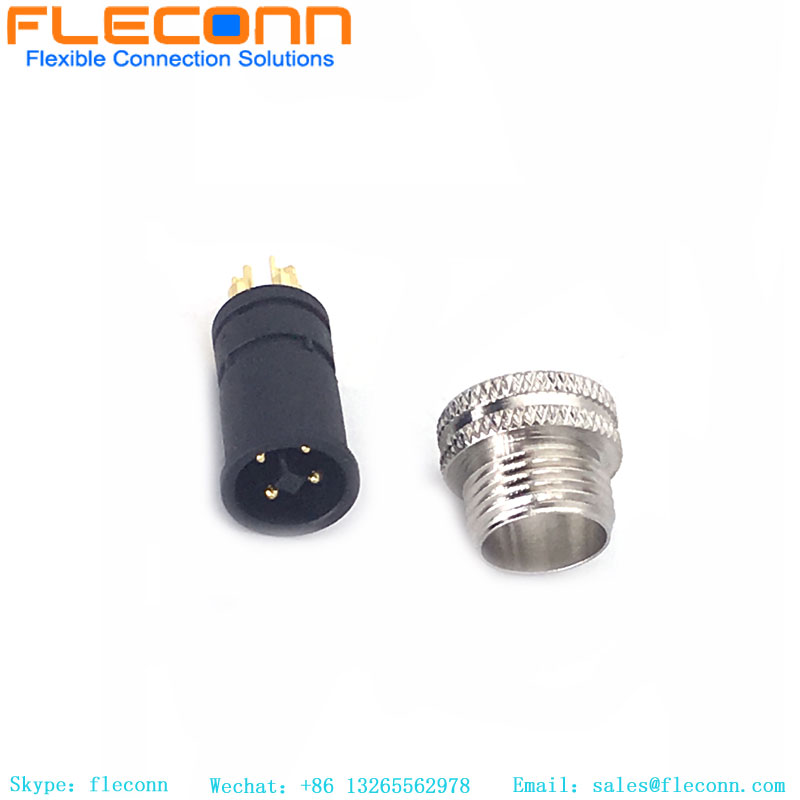

M12 4 Pin T-Coded Connector
M12 4 Pin T-Coded Connector M12 4 Pin T-Coded Connector M12 4 Pin T-Coded Connector M12 4 Pin T-Coded Connector M12 4 Pin T-Coded Connector

M12 4 Pin T-Coded Connector

Item No.: 00850
Product series: M12 Connector
Connector code: T type
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 4P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 4 Pin T-Coded Connector

M12 T-Coded Molded Connector

Product Overview

The Fleconn M12 4 Pin T-Coded Connector is designed for efficient and reliable power transmission in industrial automation, robotics, and machinery. With IP67 waterproof protection, robust housing, and secure locking, it ensures safe and stable performance in harsh environments.

Main Features

  • Connector Type: M12 T-Coded Molded Connector
  • Application: Industrial power supply and automation
  • Protection: IP67 waterproof and dustproof
  • High mechanical durability and vibration resistance
  • Secure locking system for stable connections

M12 4 Pin T-Coded Connector Technical Data

Technical data
parameter category parameter name parameter data
Mechanical and Electrical Reference standard  IEC 61076-2-106
Rated current  12A
Rated voltage  63V
Impulse voltage 1500V
Contact resistance ≤5mΩ
Insulation resistance  ≥100MΩ
EMC Shielding Shielded
Locking system  M16 × 0.75mm screw
Tightening torque Recommended : 1.0 Nm
Max : 1.2 Nm
Material Terminal material Phosphor bronze
Contact plating Au (Gold)
Insert PA66+GF, Black
Overmold TPU, Black
Screw nut  Brass, CNC
Screw nut plating  Nickel plated
O-ring  FKM
Cable UL AWM style UL2464
Conductor material Stranded Tinned Copper
Conductor cross-section  16AWG*4C
Wire colors Black, Green, White, Red
Sheath/insulation material PVC, black
Outer diameter  Ø8.0 ± 0.3mm
Cable length 1000mm +50 (Including Connecto)
Environmental Rated temperature Static : -40° ~ 80℃
Dynamic : -25° ~ 80℃
Protection degree IP67/ IP68
Environmental Compliance ROHS
Pollution degree  3

Applications

Widely used in industrial automation, robotics, machinery, power distribution systems, and other environments requiring safe and efficient power connections.

Why Choose Fleconn?

Fleconn provides reliable industrial connection solutions with high-quality materials, strict manufacturing standards, and customizable options to meet diverse customer needs.
