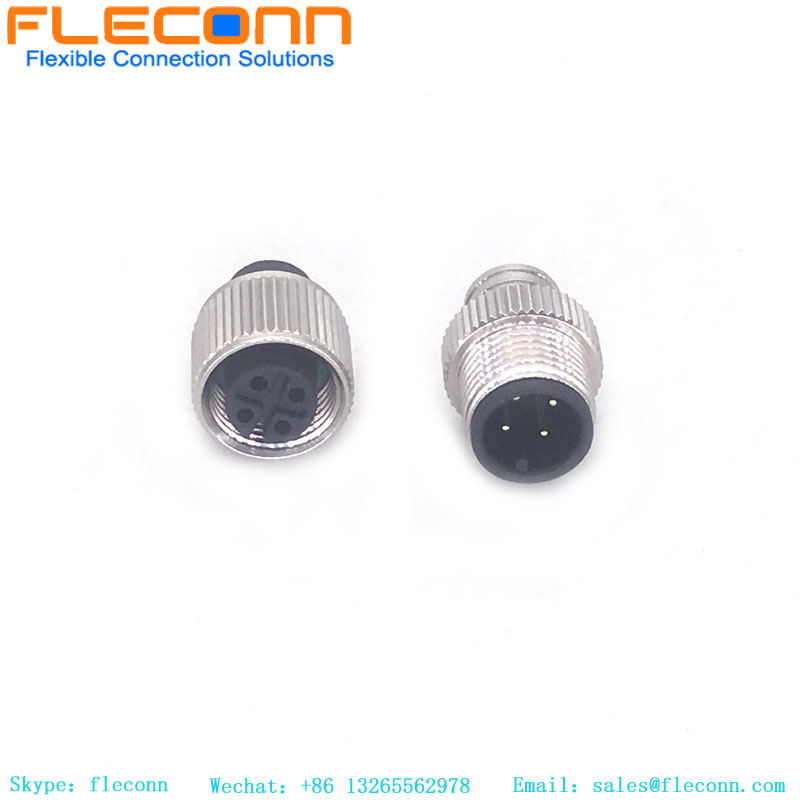

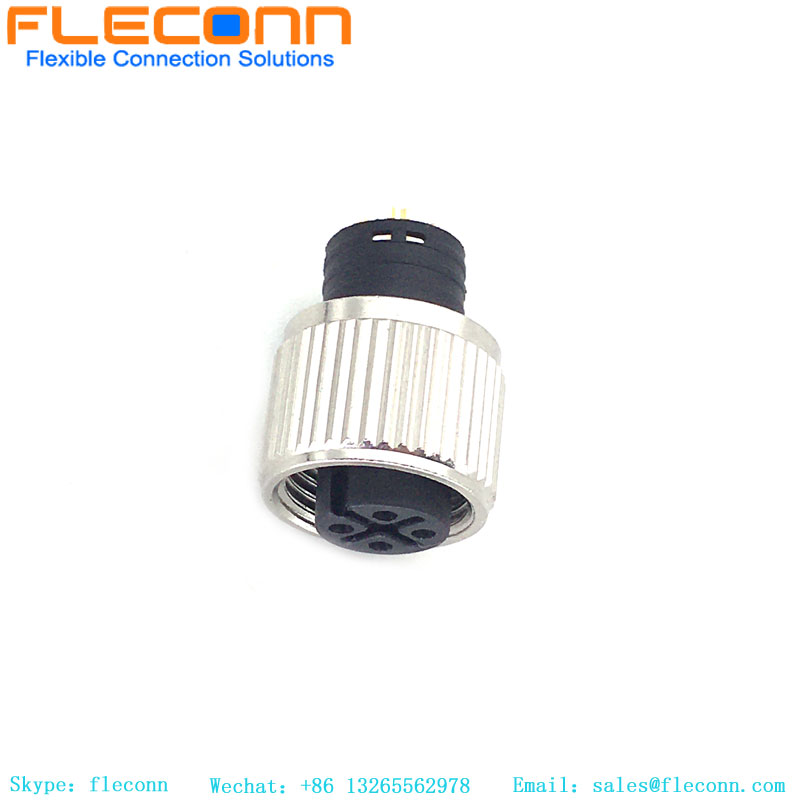

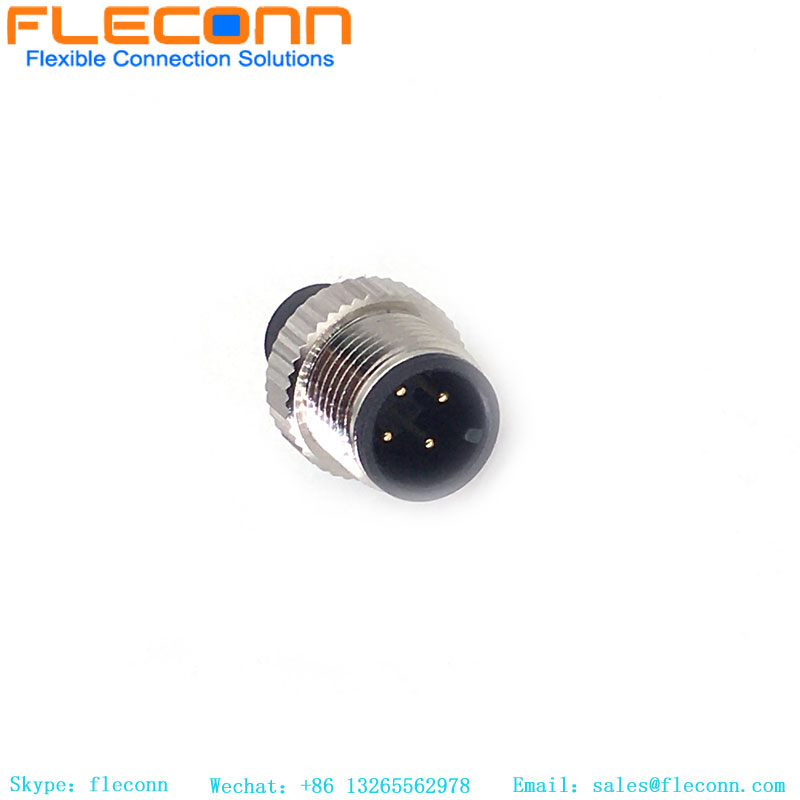

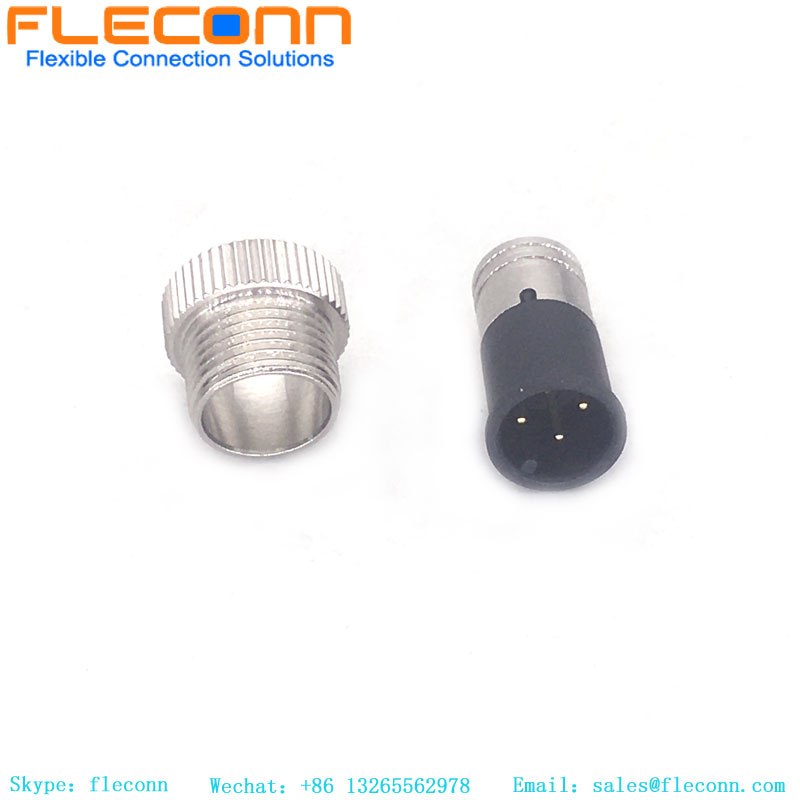

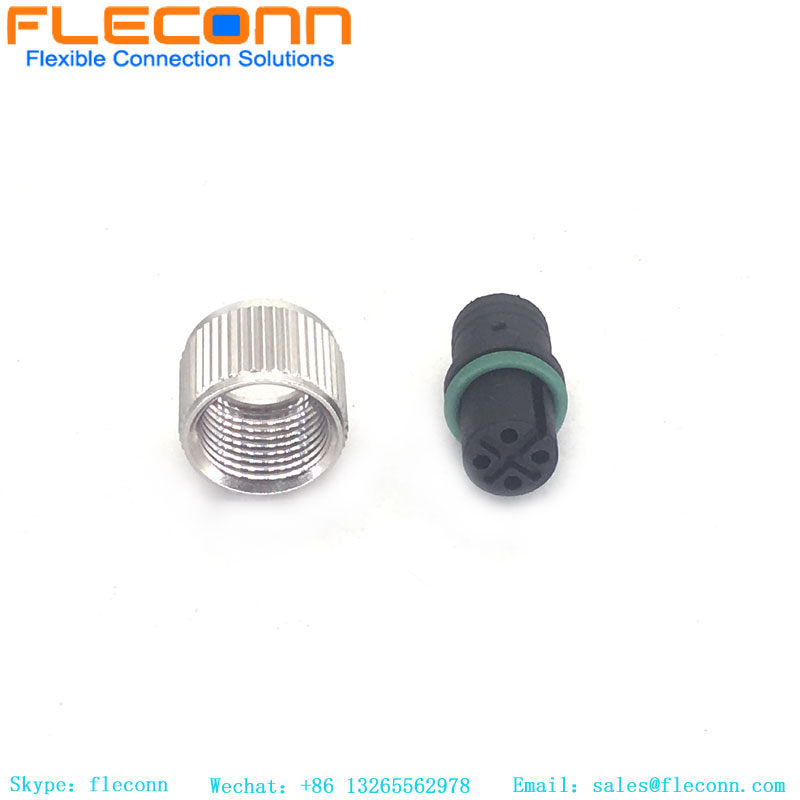

M12 4 Pin A-Coded Cable Molded Connector

M12 4 Pin A-Coded Cable Molded Connector

M12 4 Pin A-Coded Cable Molded Connector

M12 4 Pin A-Coded Cable Molded Connector

M12 4 Pin A-Coded Cable Molded Connector

M12 4 Pin A-Coded Cable Molded Connector

Description Review

Description

M12 4 Pin A-Coded Cable Molded Connector

M12 Molded Cable Connector， B-Code Straight 5pin Female Non-shield connector

The M12 4 Pin A-Coded Molded Connector is widely used in sensor, actuator, and industrial automation systems. With its standard A-coded design, it ensures secure connections for signal and data transmission. The overmolded structure provides excellent durability, waterproof performance, and resistance to oil and vibration, making it suitable for harsh industrial environments.

Product Features

Standard M12 A-coding with 4 pins
Reliable molded housing with PVC or PUR cable
IP67 protection against water and dust
High vibration and shock resistance
Stable transmission for sensors and actuators

Applications

Sensors and actuators
Industrial automation systems
Robotics and control systems
Data and signal transmission

M12 4 Pin A-Coded Cable Molded Connector Technical Data

Technical data
parameter category	parameter name	parameter data
Mechanical and Electrical	Reference standard	IEC 61076-2-101
	Rated current	4A
	Rated voltage	250V
	Impulse voltage	800V
	Contact resistance	≤5mΩ
	Insulation resistance	≥100MΩ
	EMC Shielding	Full shielding
	Locking system	M12 × 1.0mm screw
	Tightening torque	Recommended: 1.0 Nm Max: 1.2 Nm
Material	Terminal material	Phosphor bronze
	Contact plating	Au (Gold)
	Insert	PA66+GF, Black
	Overmold	TPU, Black
	Screw nut	Brass, CNC
	Screw nut plating	Nickel plated
	O-ring	FKM
Cable	UL AWM style	UL2464
	Conductor material	Stranded Tinned Copper
	Conductor cross-section	22AWG*4P
	Wire colors	Black, White, Red, yellow, green
	Sheath/insulation material	PVC or PUR, black
	Outer diameter	Ø4.7 ± 0.2mm
	Cable length	1000mm ±50 (Including Connector)
Environmental	Rated temperature	Static: -40° ~ 80℃ Dynamic: -25° ~ 80℃
	Protection degree	IP67
	Environmental Compliance	ROHS
	Pollution degree	3
