Home > Overmolded Connector Cable Harnesses

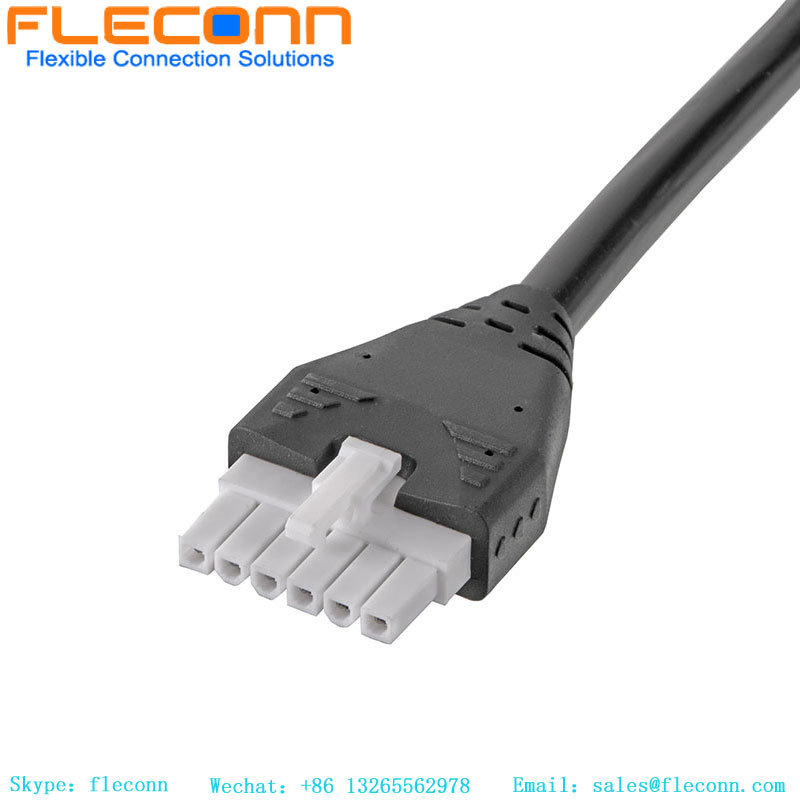

Custom Molex 5557 Series 39014061 Wire Harness
Custom Molex 5557 Series 39014061 Wire Harness Custom Molex 5557 Series 39014061 Wire Harness Custom Molex 5557 Series 39014061 Wire Harness Custom Molex 5557 Series 39014061 Wire Harness Custom Molex 5557 Series 39014061 Wire Harness

Custom Molex 5557 Series 39014061 Wire Harness

Item No.: MX-6P-4.2PH-39014-PVC-OM-0.5M
Product Name: Mini-Fit 4.2 Wire Harness
Connector Pitch：4.2MM
Connector : Molex 39014061, 2/3/4/5/6 pin
Crimp Terminal: 39000077
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Request Quote
Description Review
Description

Molex Mini-Fit 5557 Series 39014051 Wire Harness Product Description


FLECONN can custom made  overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Detail description for Molex Connector Housing, Rcpt, 6Pos - 39014061 molded cable

Prouduct Name  Molex Overmolding Mini-Fit 39014061 Cable Molding Cable
Equivalent to Molex Part No.  2153300600，2153300605，2153300610，2153300620，2153300630，39014061
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 39014061 Micro-Fit 4.2 Receptacle Housing, Dual Row, 6 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 39000077 Micro-Fit 4.2 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007 AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1007 Round cable/ UL2468 Parallel cable
10. Color: Black, white, blue, green etc. MOQ 3000m except black.
11. Wiring diagrm: defined by customers
12. Inner molding material: LDPE resin
13. Outer molding material: 45P PVC resin
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag



























Custom Molex 5557 Series 39014061 Wire Harness

Custom Molex 5557 Series 39014061 Wire Harness

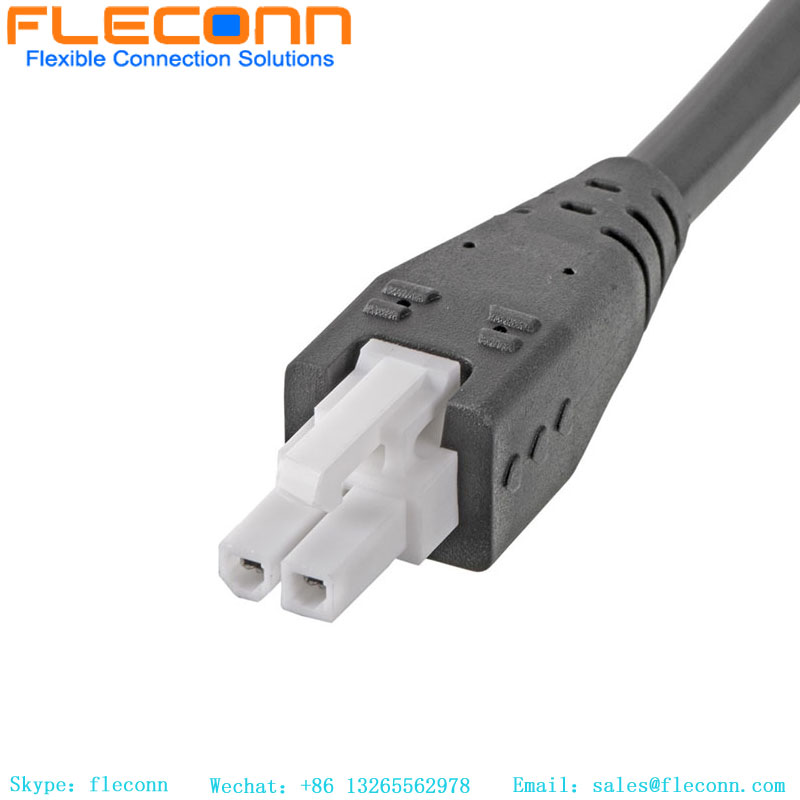

Molex 2P Mini-Fit Jr. Receptacle Housing 39014021 Molded Cable

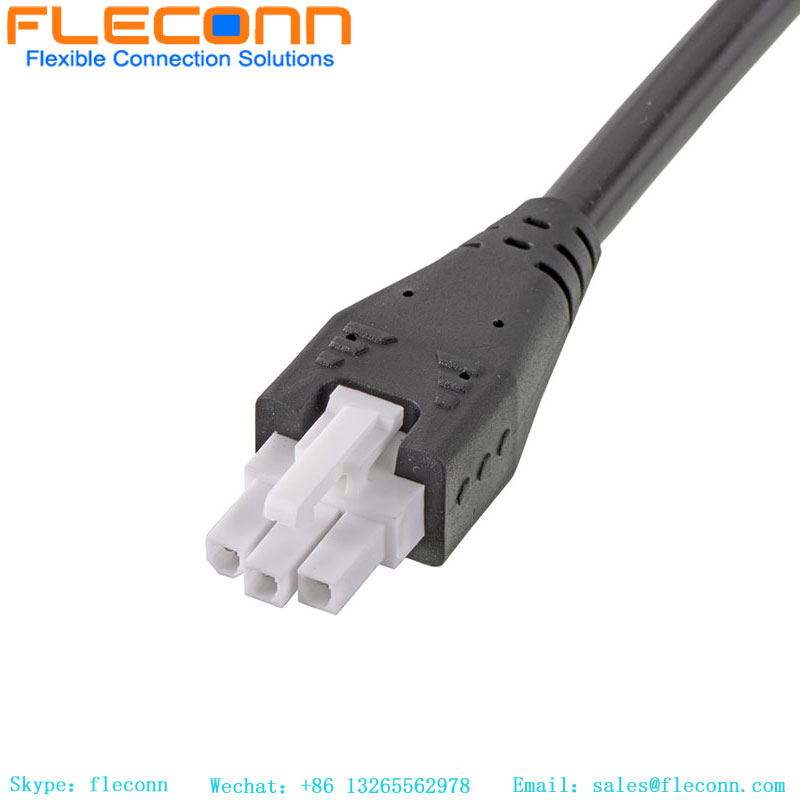

Molex 3Pin 5557 Series 39014031 Overmolded Cable

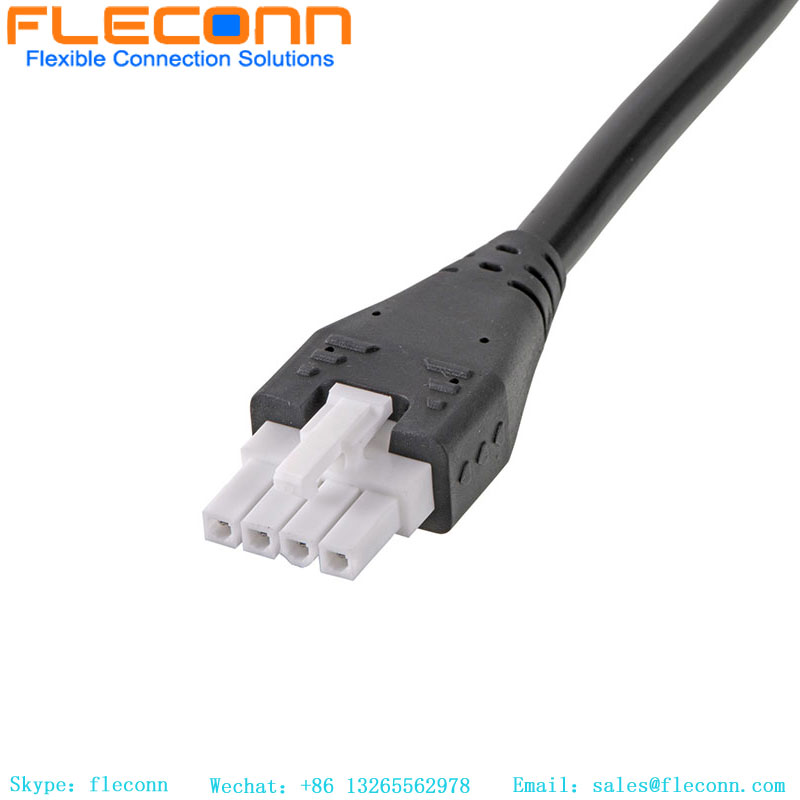

Molex 4Pos 39014041 Cable Assembly

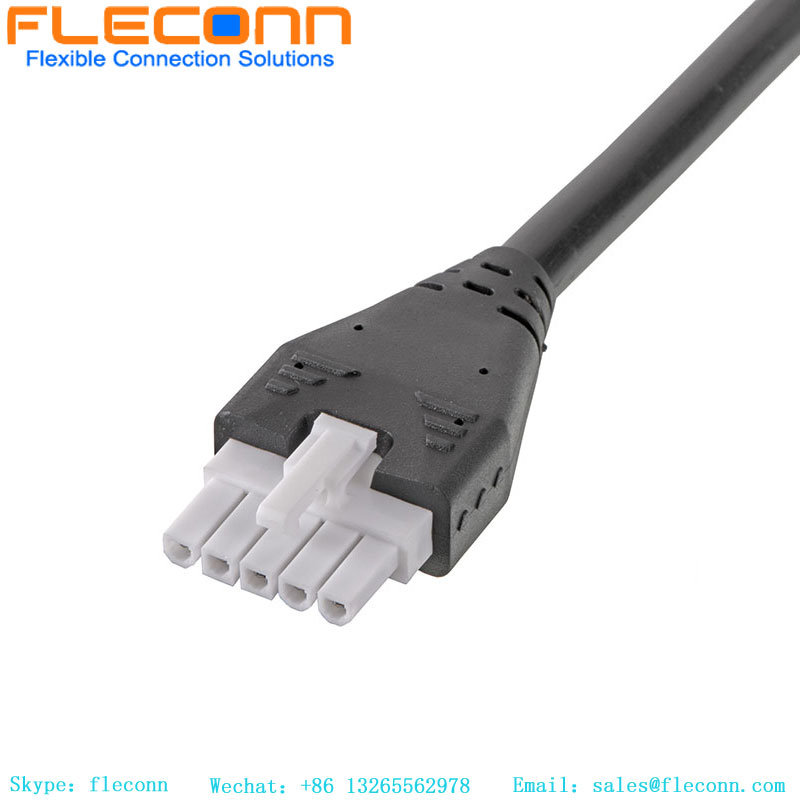

Molex Mini-Fit 5557 Series 39014051 Wire Harness

Overmolded Connector Cable Harnesses

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
