An M12 cable is a type of circular cable connector, similar to the M8, but slightly larger, with a 12-millimeter thread diameter. It is widely used in industrial automation, sensors, fieldbus connections, and other rugged environments where durability and secure connections are essential. The M12 connector system is known for its robust, waterproof, and dustproof design, often rated with an IP65, IP67, or even IP68 protection, making it suitable for applications that involve exposure to moisture, dust, and vibration.
Common Applications of M12 Cables
-
Industrial Automation
- Sensors and Actuators: M12 cables are popular for connecting industrial sensors (temperature, proximity, photoelectric, and pressure sensors) and actuators.
- Fieldbus Connections: M12 connectors are also used in fieldbus systems (e.g., PROFIBUS, DeviceNet) where they provide secure data transmission over longer distances.
- I/O Modules and PLCs: M12 cables connect I/O modules, PLCs, and control systems in factory automation for transmitting data and power.
-
Transportation
- Rail and Road Transport: M12 connectors are common in trains, buses, and other transportation systems for communication and control connections that require vibration resistance and ruggedness.
- Traffic Control Systems: They are used in traffic lights, signaling, and control systems where exposure to the elements demands durable cabling solutions.
-
Robotics
- Motion Control and Sensors: In robotics, M12 cables are used to connect position sensors, motor drives, and controllers.
- Industrial Robots and Cobots: Due to their durability, M12 connectors are also used in industrial robotic arms and collaborative robots (cobots) for power and data connections.
-
Automotive and Heavy Machinery
- Vehicle Electronics: M12 cables are used in vehicle electronics to provide secure connections between sensors, control units, and diagnostic systems.
- Heavy Equipment: In construction and agricultural machinery, M12 connectors are used to connect sensors and control systems, where ruggedness is crucial.
-
Food and Beverage Industry
- Food Processing Equipment: In food production environments, M12 connectors with stainless steel housing are often used for their chemical resistance and ability to withstand frequent washdowns.
- Packaging Equipment: M12 connectors are found in packaging lines where they connect sensors, control systems, and motors.
Key Features of M12 Cables
- Threaded Locking Mechanism: The screw-lock mechanism ensures secure, stable connections that are resistant to vibration.
- Pin Configurations: Available in multiple pin configurations (e.g., 3, 4, 5, 8, or 12 pins), allowing for different data, power, and signal needs.
- Ruggedized Design: Often made to meet IP ratings (IP65 to IP68) for waterproof, dustproof, and corrosion-resistant properties.
- Shielded Options: Available with shielding to reduce interference, making them suitable for high-speed data communication in noisy environments.
- Variety of Coding Types: M12 connectors come with different coding types (e.g., A, B, D, X, and S coding) that ensure compatibility with specific protocols and prevent incorrect connections.
M12 Coding Types and Their Applications

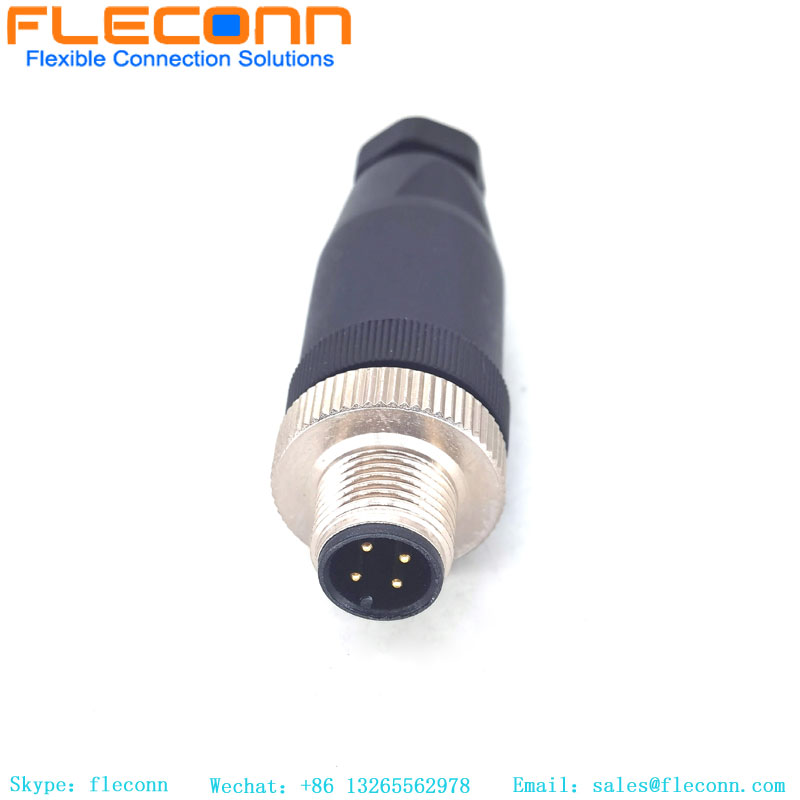

- A-Coding: For sensors, DC power applications, and general signal transfer.
- B-Coding: Typically used for PROFIBUS connections.
- D-Coding: For Ethernet applications, supporting data rates up to 100 Mbps.
- X-Coding: For high-speed Ethernet applications, with data rates up to 10 Gbps.
- S- and T-Coding: Commonly used for AC and DC power applications.
M12 cables are highly versatile and reliable, offering a secure, industrial-grade solution for power, data, and signal connections in demanding applications. If you’re looking to use M12 cables for a specific application, I can help provide more detailed recommendations based on your requirements!
