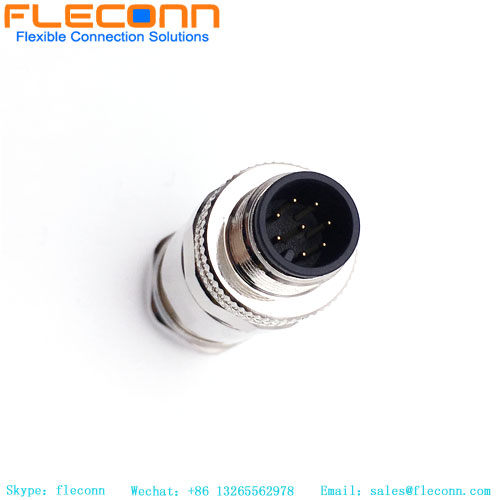

M12 8 Pin Connector Application

Author : Arbyter Qing

Update time : 2025-06-11 15:18:02

️ Applications of M12 8-Pin Connector

✅ 1. Multi-Signal Sensor/Actuator Connections

Ideal for sensors or actuators that require multiple digital or analog I/O lines in a single connector.
Reduces the need for multiple cables and simplifies wiring.

✅ 2. Encoder and Resolver Connections

Used to transmit quadrature signals (A/B/Z) and power in one connector for motion control systems.
Supports differential signal transmission for noise immunity.

✅ 3. IO-Link and Analog Sensors

Supports IO-Link devices that require additional data and diagnostic channels.
Carries analog signals (e.g., 4–20 mA or 0–10 V) along with control power.

✅ 4. Industrial Ethernet Variants (with special coding)

While standard M12 D-coded connectors are for Ethernet, some X-coded M12 connectors (also 8-pin) are used for Gigabit Ethernet (1000BASE-T).
These are shielded and used for high-speed communication.

✅ 5. Power + Signal Combination

Allows delivery of low-voltage power and multiple signal lines through one cable—ideal for compact devices like vision sensors or light curtains.

✅ 6. Compact Control Devices

Connects mini PLCs, distributed I/O modules, and compact control boxes that need multiple channels with minimal cabling.

️ Key Benefits

More signals in a compact form factor
Reduces cable clutter and installation time
IP67/IP68 protection for harsh environments
High-vibration resistance for reliable industrial use

Industries & Use Cases

Industry	Use Case Example
Factory Automation	Multi-signal sensors or I/O blocks
Robotics	Encoder feedback with power & signal
Packaging	Photoelectric sensors with dual outputs
Automotive	Compact control systems in tight spaces
Machine Vision	Cameras with signal + power through one line
