M12 4-Pin Cable Applications

An M12 4-pin cable is a type of industrial cable that features an M12 connector with four male or female pins, commonly used for various types of data and power transmission in industrial applications. The M12 connector is known for its durability and resistance to environmental factors such as dust, moisture, and vibration, making it ideal for rugged environments like factories, automation systems, and outdoor installations.

Key Features of an M12 4-Pin Cable:

1. Connector Type (M12):

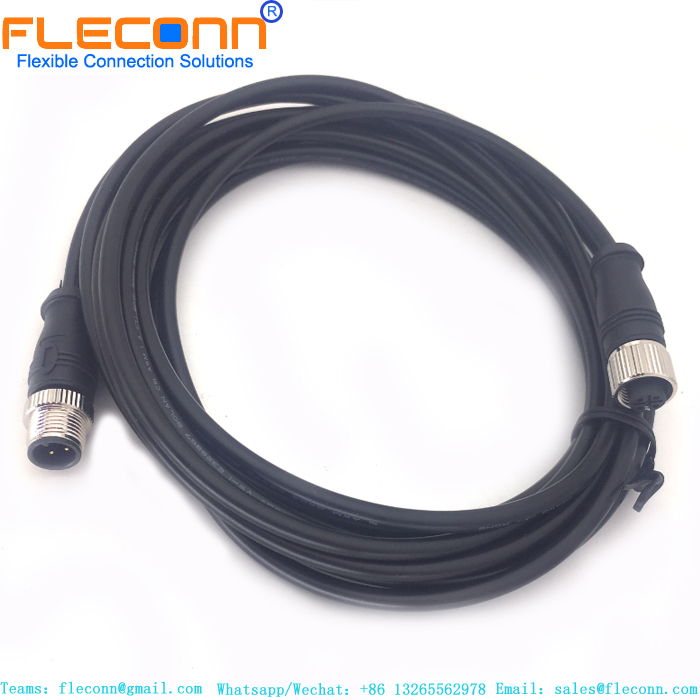

• The M12 is a circular connector widely used in automation, industrial control systems, and network applications. It’s designed for reliable performance in harsh environments and is available in various coding types (A-coded, B-coded, D-coded, S-coded, T-coded etc.).
2. 4 Pins:
• The cable typically features 4 male pins or 4 female contacts, allowing it to support different configurations such as:
• 2 pins for power
• 2 pins for signal transmission (digital or analog signals)
• The pinout configuration can vary depending on the application, such as controlling sensors, actuators, or for communication in industrial control systems.
3. Durability:
• M12 4 pin connectors are made to withstand mechanical stress, moisture, and temperature extremes, which makes them suitable for use in industrial environments like factory floors, automotive assembly lines, and outdoor installations.
4. Applications:
• Industrial Automation: Often used to connect sensors, actuators, or other equipment in automation systems.

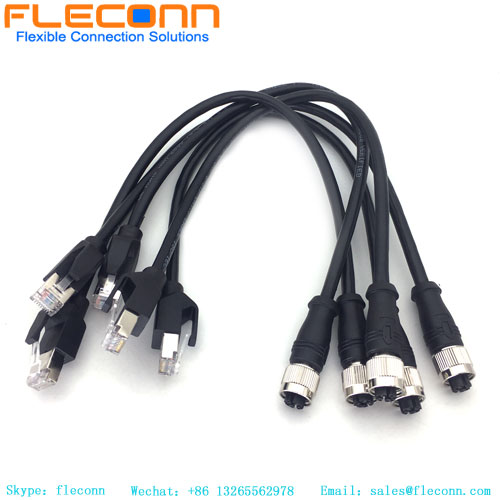

• Networking: M12 4-pin version connectors are sometimes used for industrial Ethernet connections (though more commonly for other types of communication).
• Power & Signal Transmission: Common in systems where low-voltage power and signals need to be transmitted over a reliable, rugged cable.
5. Variability in Coding:

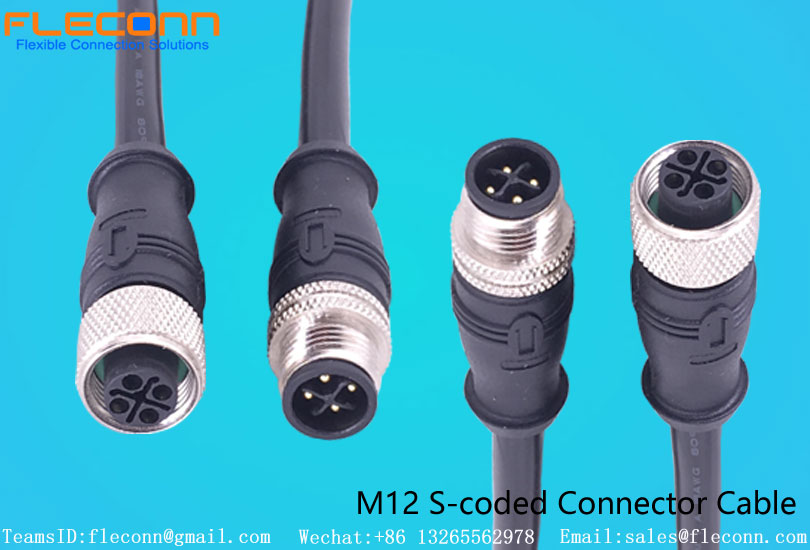

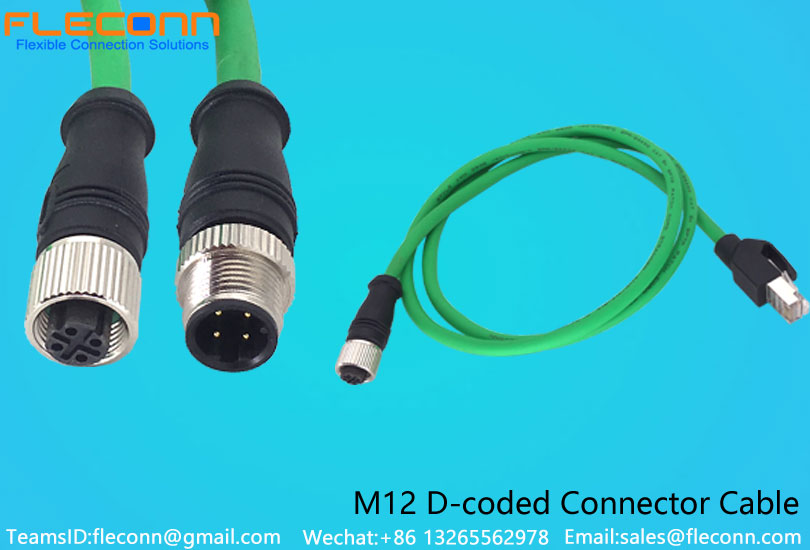

• M12 connectors come in various coding types (A-coded, B-coded, D-coded, etc.), which determine their intended application (e.g., power, data, or Ethernet). The A-coded version, for example, is typically used for signal and power applications, while the D-coded is more common in Ethernet applications. S-coded and T-coded are used for big current application.

Common Uses:

• Sensor Connections: M12 4-pin cables are frequently used to connect sensors to controllers in industrial settings.
• Control Systems: For connecting controllers and devices in process automation systems.
• Power Supply: Can be used to transmit power between industrial devices, especially when space is constrained.

Benefits:

• Compact and Secure: The M12 connector is small yet secure, offering strong resistance to vibrations and mechanical strain.
• Weatherproof: Many M12 cables are rated for IP67 or higher, which ensures protection against dust and water ingress.
• Versatile: FLECONN M12 4-pin cables can be adapted for many different configurations depending on the needs of the application, whether it’s for power, signal, or data transmission.

In summary, an M12 4-pin cable is a rugged, versatile solution for industrial applications where reliability, durability, and resistance to environmental factors are critical.
