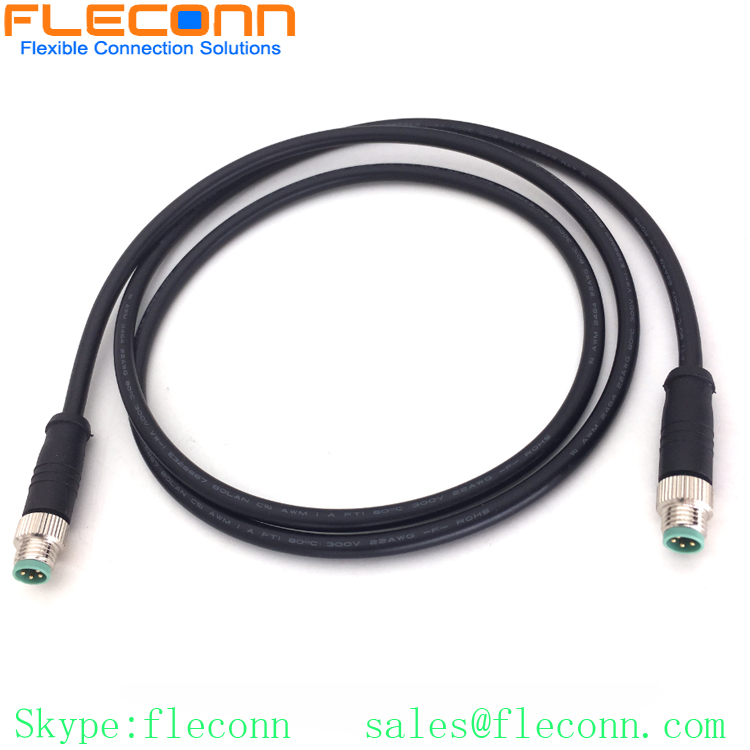

M8 4-Pin Cable – Application Overview

What Is an M8 4-Pin Cable?

An M8 connector has an 8 mm diameter thread. The 4-pin version includes four electrical contacts, typically used for low-power signal and control applications in industrial systems.

✅ Common Applications

1. Sensor Connections

• Connects proximity sensors, photoelectric sensors, temperature sensors, and position encoders

• Transmits digital (PNP/NPN) or analog (e.g., 0–10V, 4–20mA) signals to control systems

2. Actuator Control

• Powers and controls small actuators, such as solenoid valves or mini motors

• Supports basic signal and power transmission

3. IO-Link Devices

• Frequently used for IO-Link communication, enabling bi-directional data exchange between smart sensors and controllers

4. Robotics & Compact Machinery

• Ideal for space-constrained environments like robotic arms or compact automation cells

• Offers secure, vibration-resistant connections

5. Industrial Vision Systems

• Interfaces with LED lighting, triggers, and position sensors in machine vision setups

️ Typical Pinout (A-coded)

Used In These Industries

Key Benefits

• Compact & lightweight for tight spaces

• Rugged & waterproof (typically IP67/IP68 rated)

• Quick connect/disconnect with secure threading

• Supports analog, digital, and IO-Link communication



Summary

The M8 4-pin cable is the ideal solution for industrial environments where space-saving, reliable, and versatile connections are required. Whether it’s for a smart sensor or a compact actuator, this connector delivers consistent performance and seamless integration.

Small in size. Big on performance. Trusted in automation.
